Not so nice

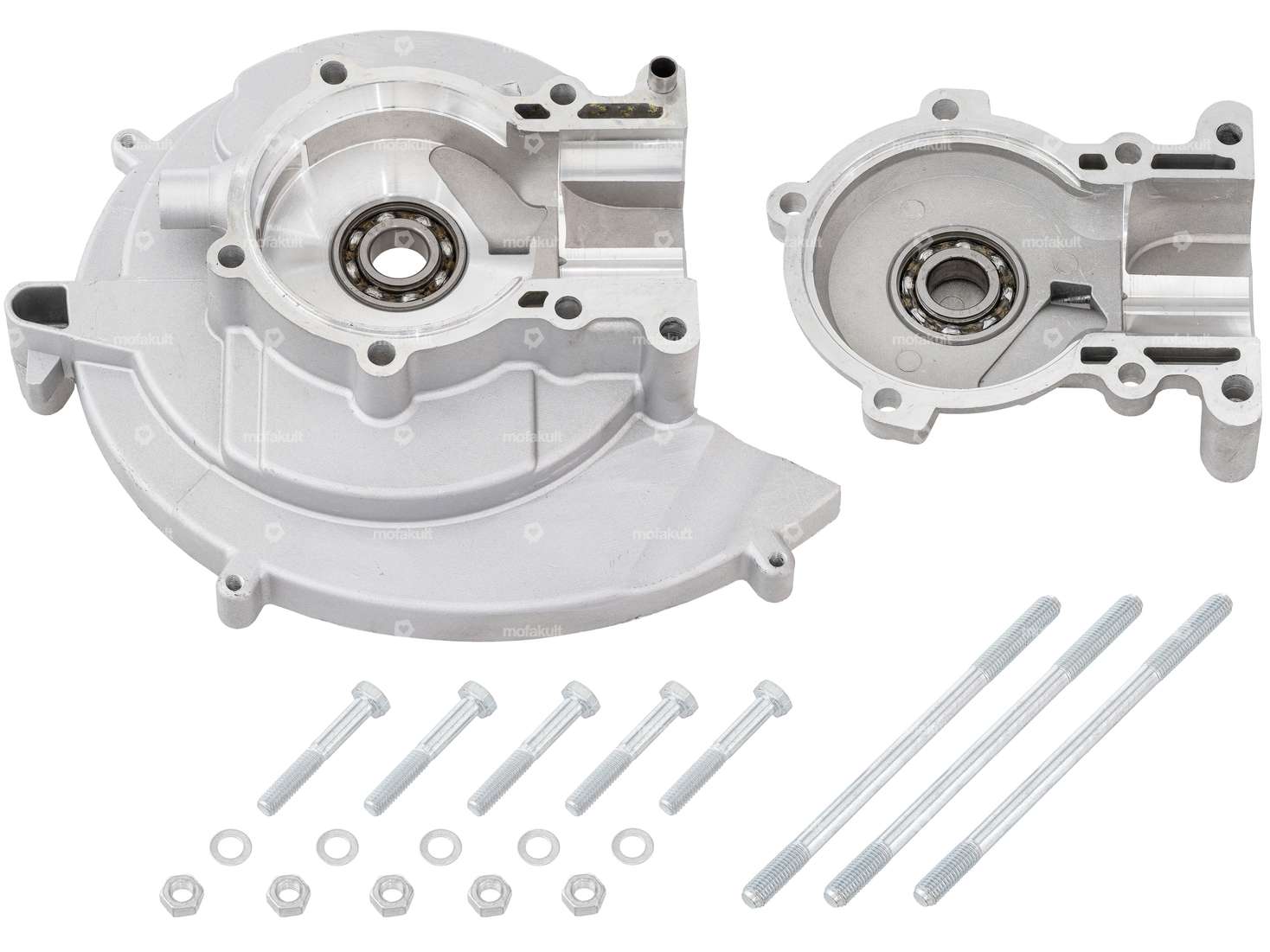

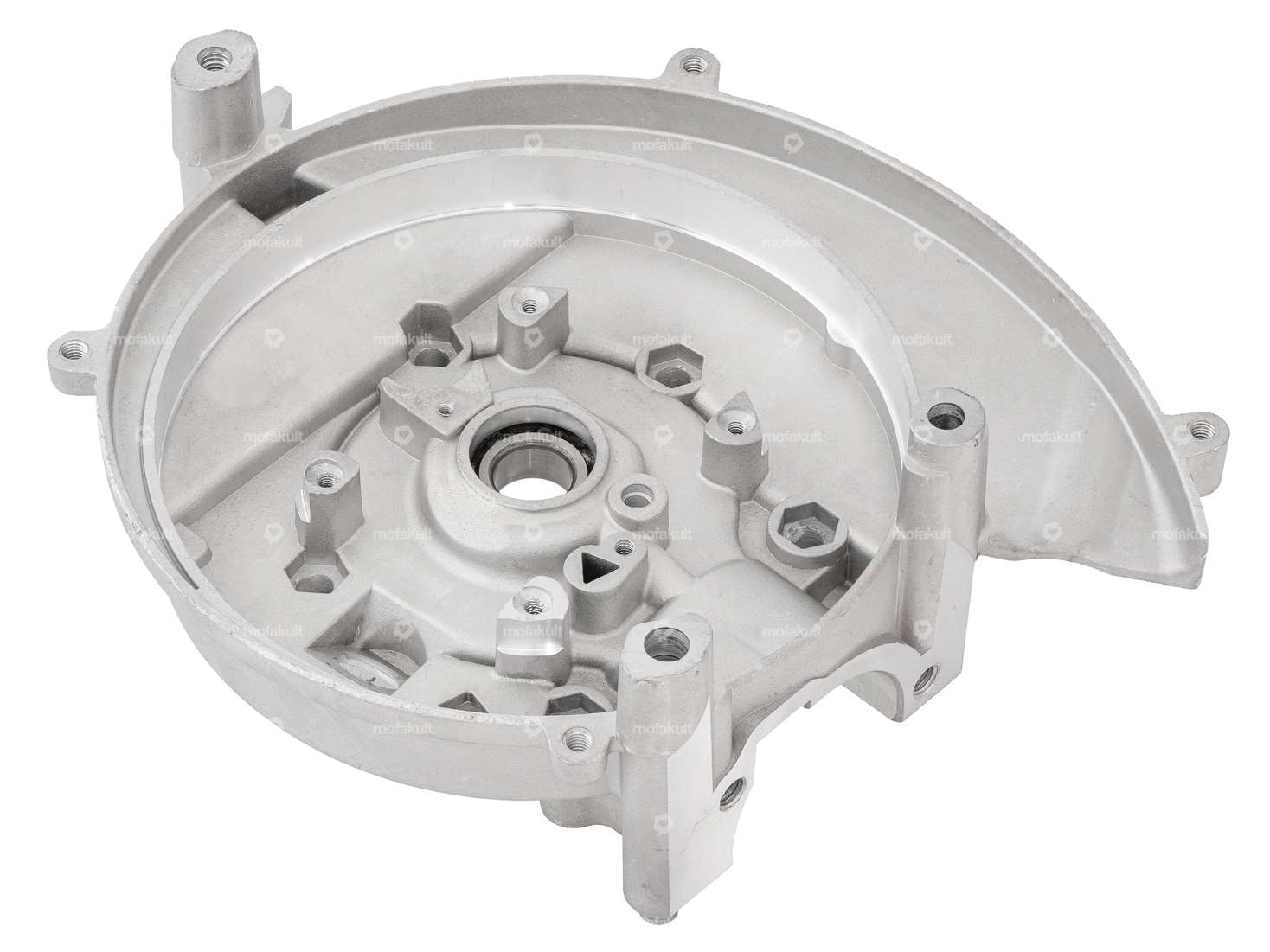

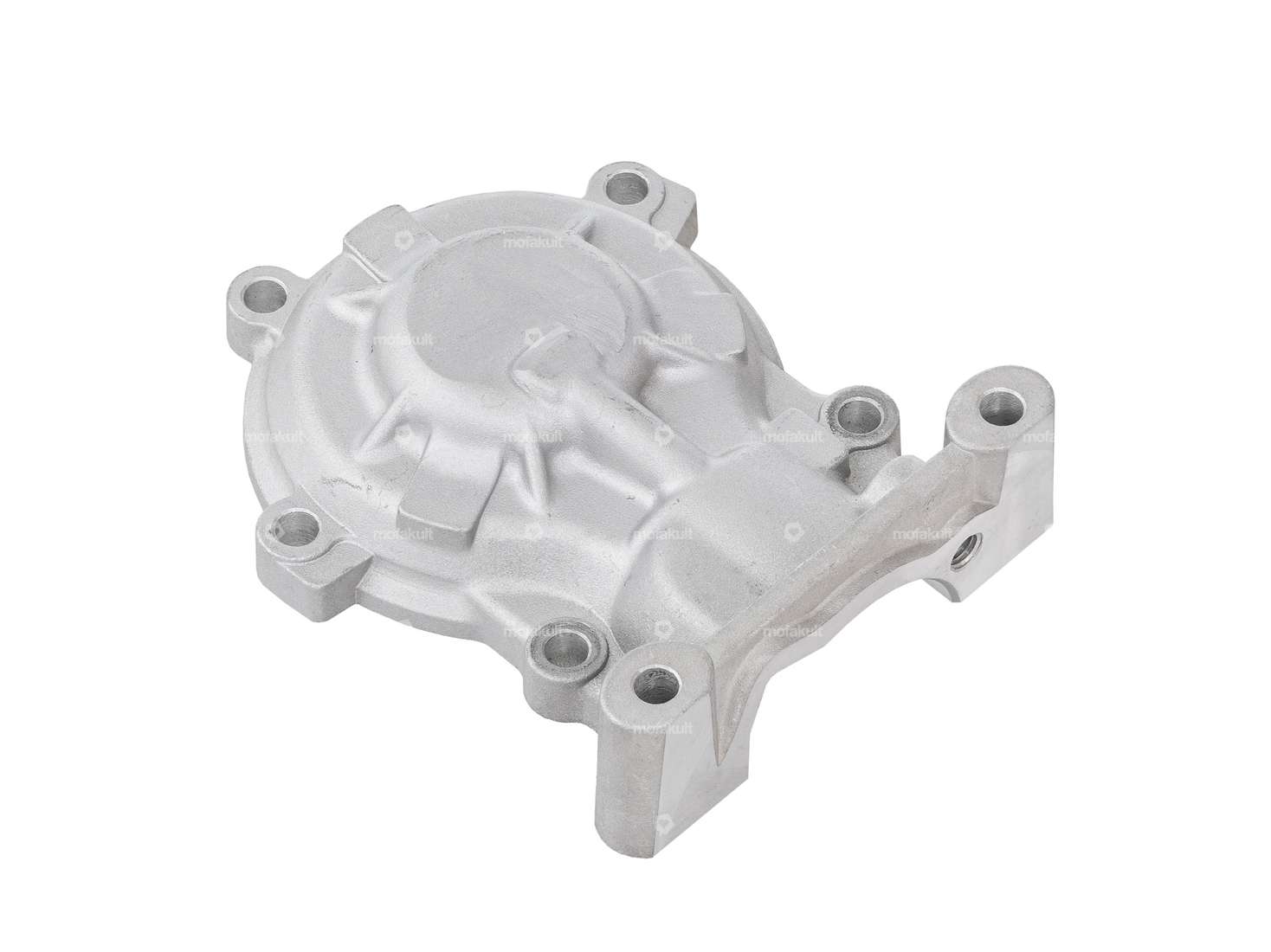

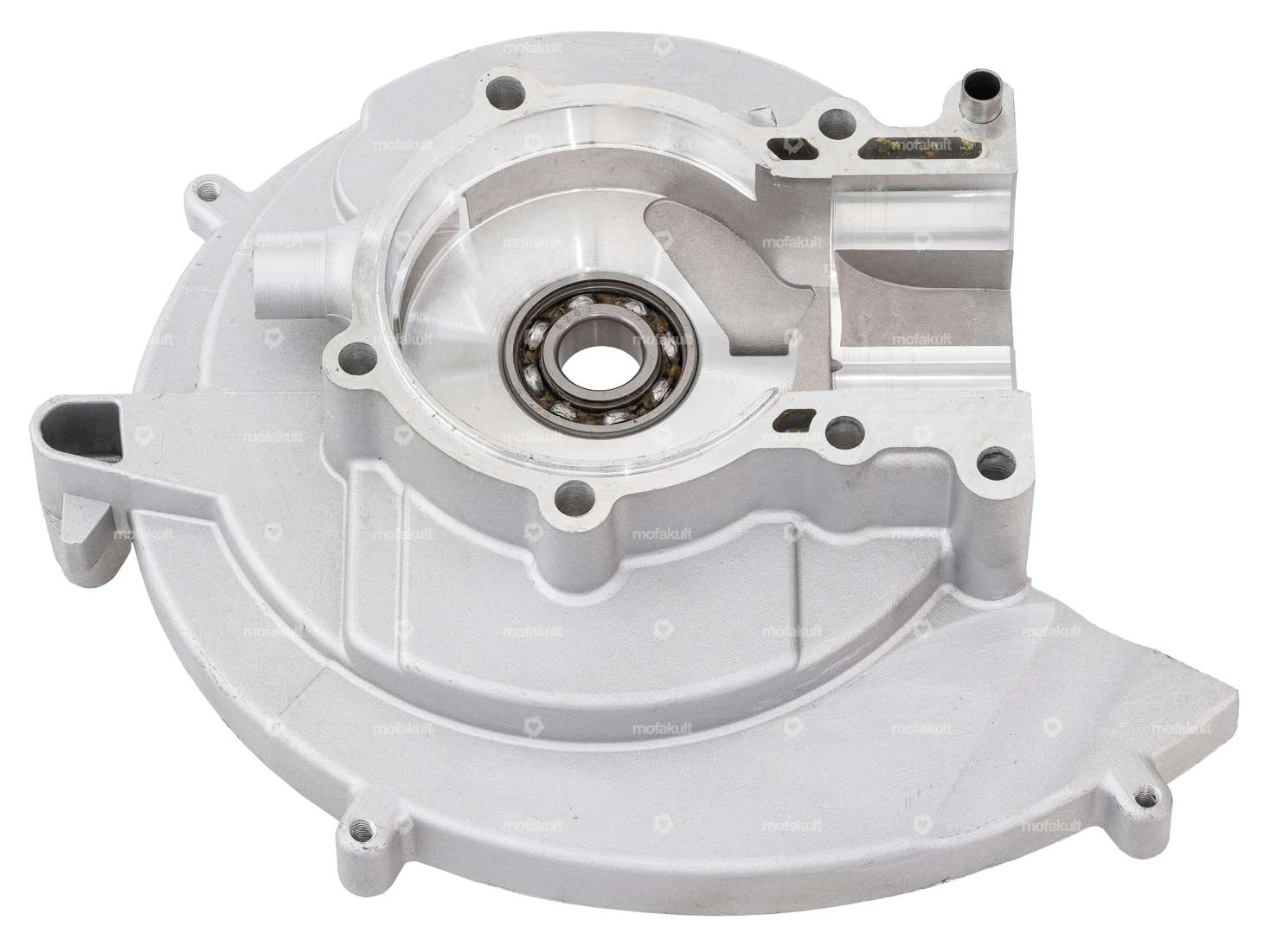

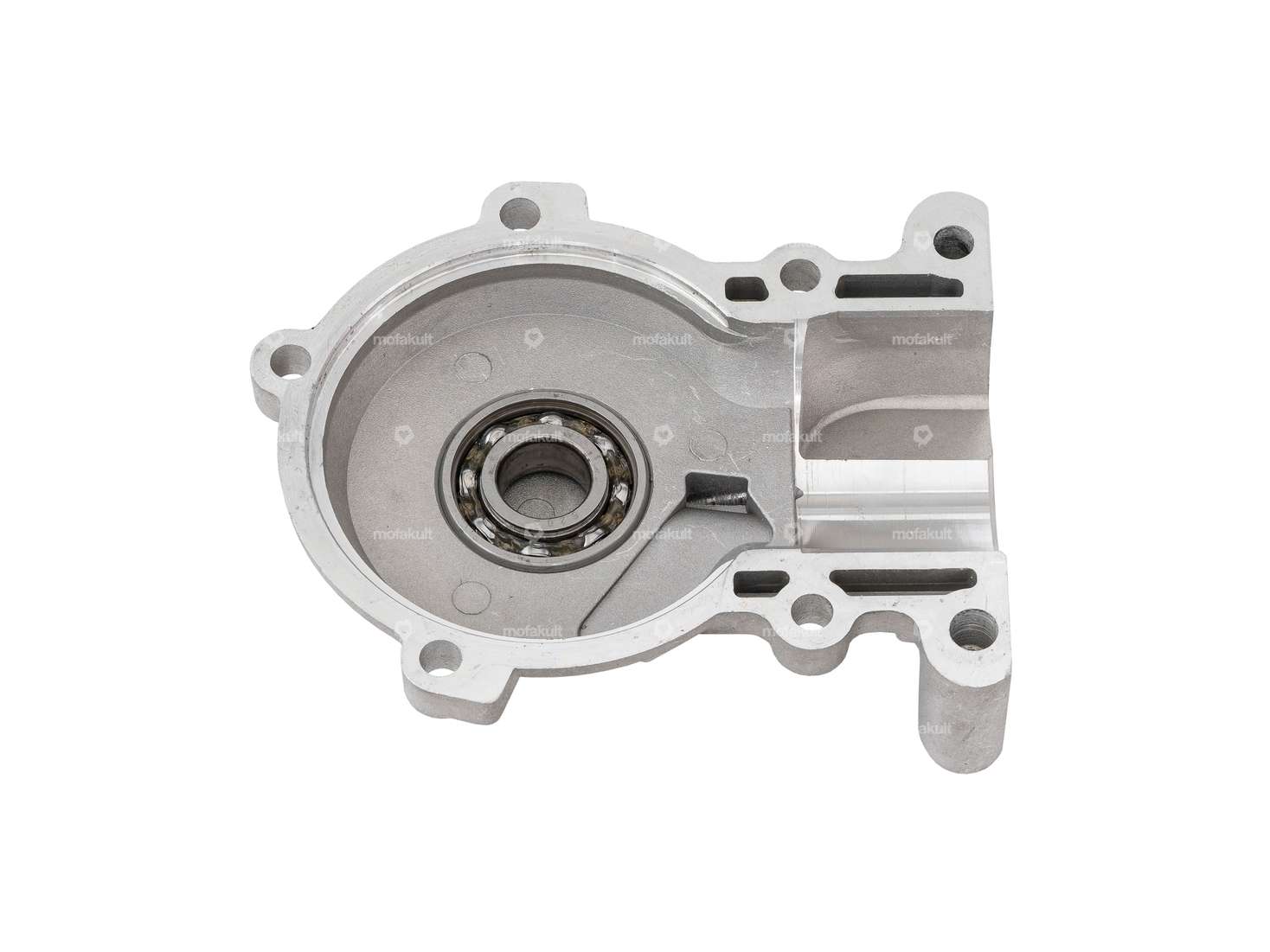

Engine housing with already pressed-in ball bearings suitable for various Piaggio models (Ciao, Si, Bravo & Boxer).
Inlet window dimensions: 7 x 24 mm
Ø inside inlet: 12 mm
Carburetor connection diameter: 16 mm
The stud bolts, screws, nuts and washers are included in the scope of delivery
Mäsig-läsig! – We strive to offer you the widest range of moped spare parts. However, this product is of rather poor quality and is not recommended by us. Should you nevertheless choose this item, we understand, but cannot offer you any guarantee or exchange.
The plane of the intake window is too low. The distance between the crankshaft and engine housing is too large. As a result, the required pre-compression is not achieved. Therefore, only skilled mechanics who can rectify this small shortcoming should attempt this project.
| Material | Aluminum |
| Surface | sandblasted |
| Stock number | 6202 |
| Piaggio | Ciao - P , SC , PX , C24 Si Bravo / Super Bravo Boxer Grillo |
