EBR telescopic fork reinforced | Puch

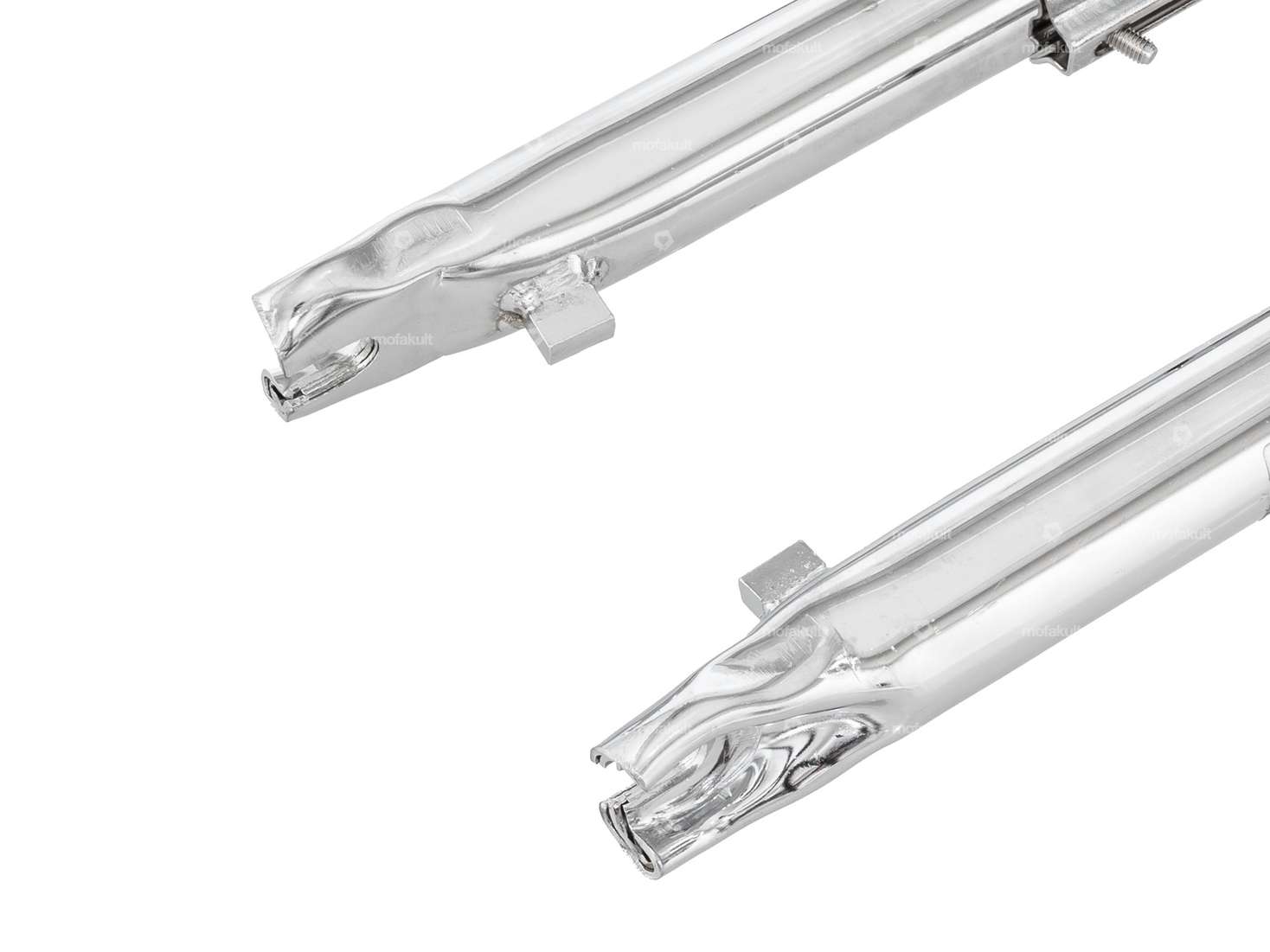

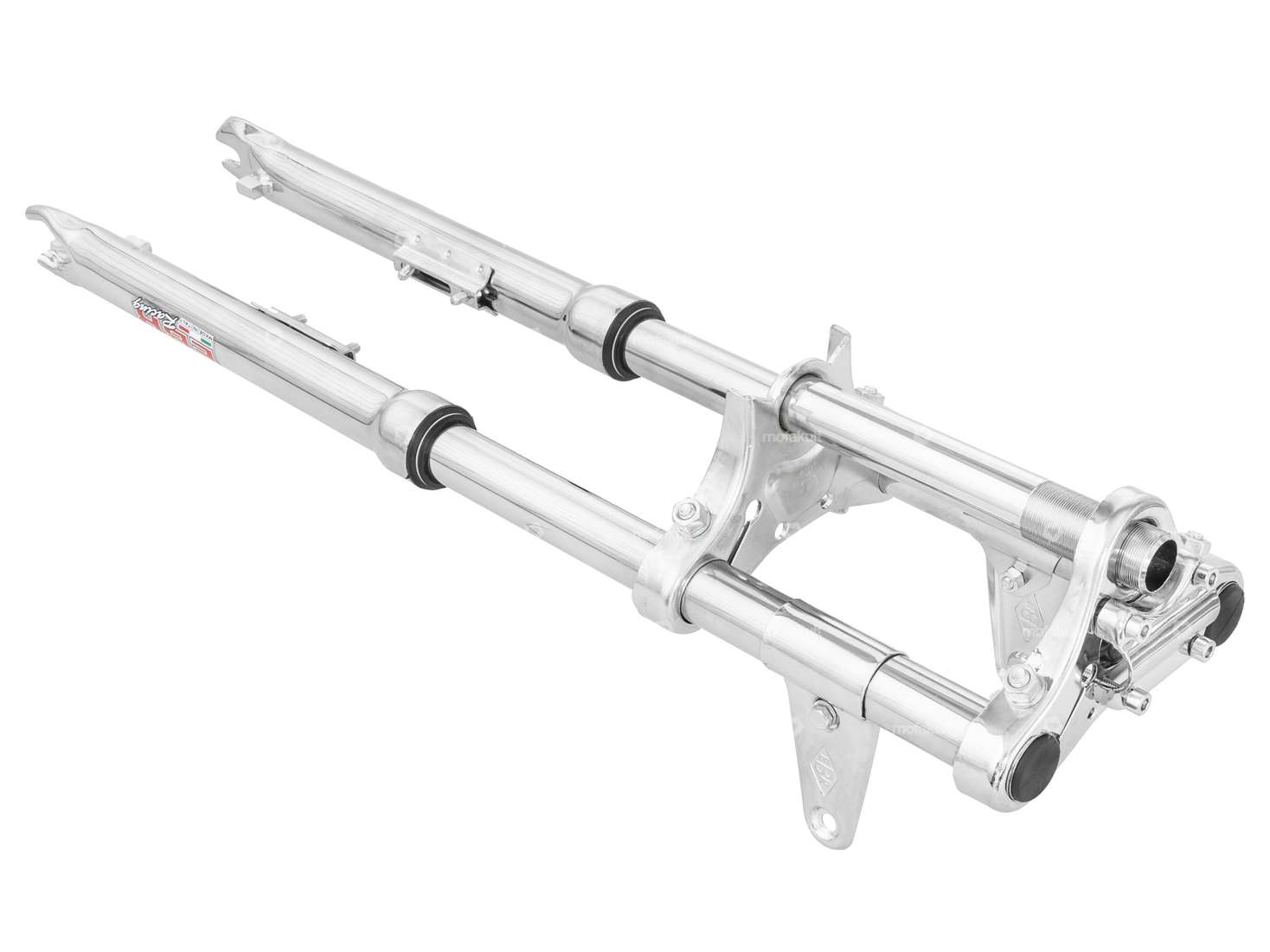

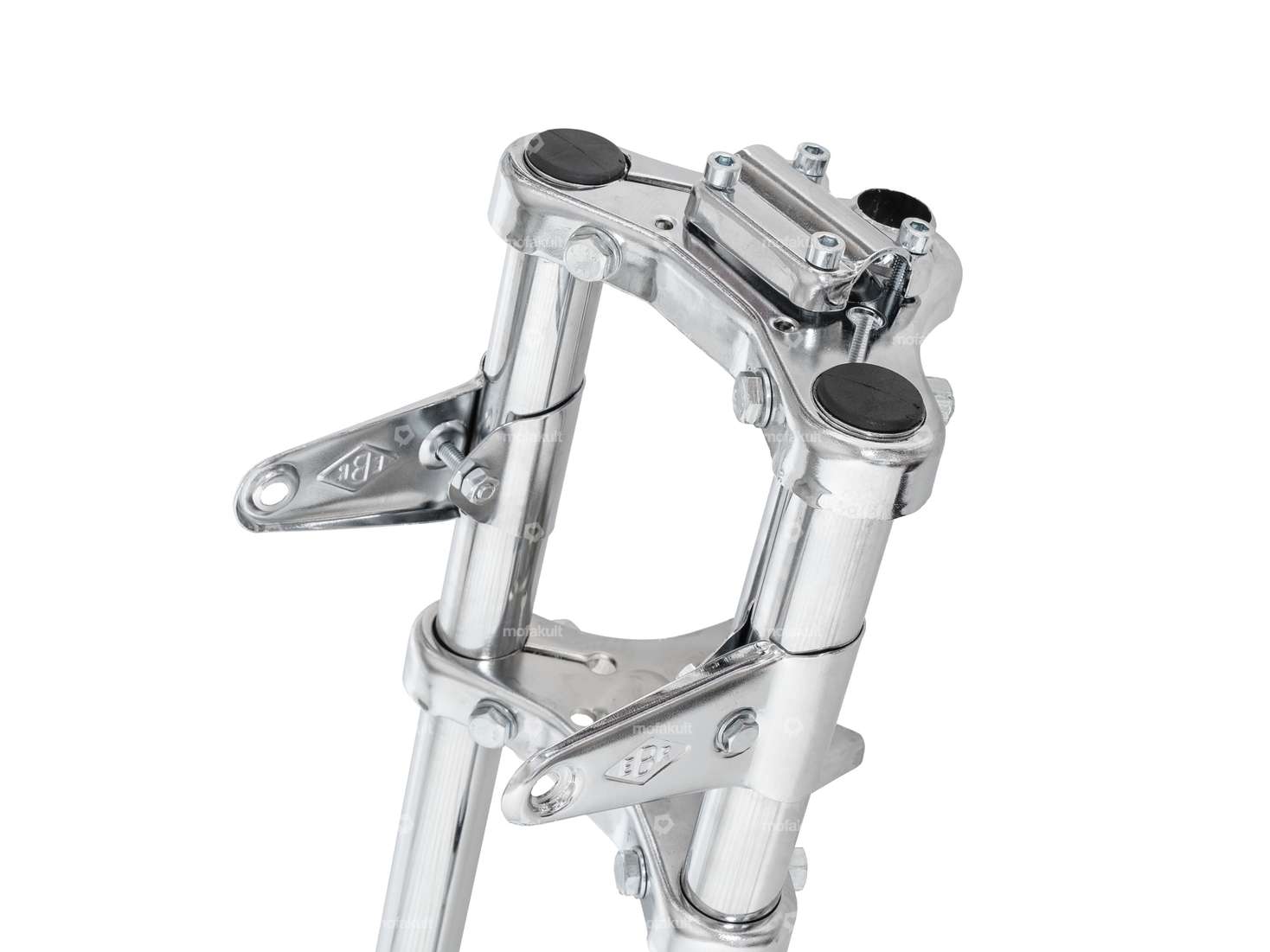

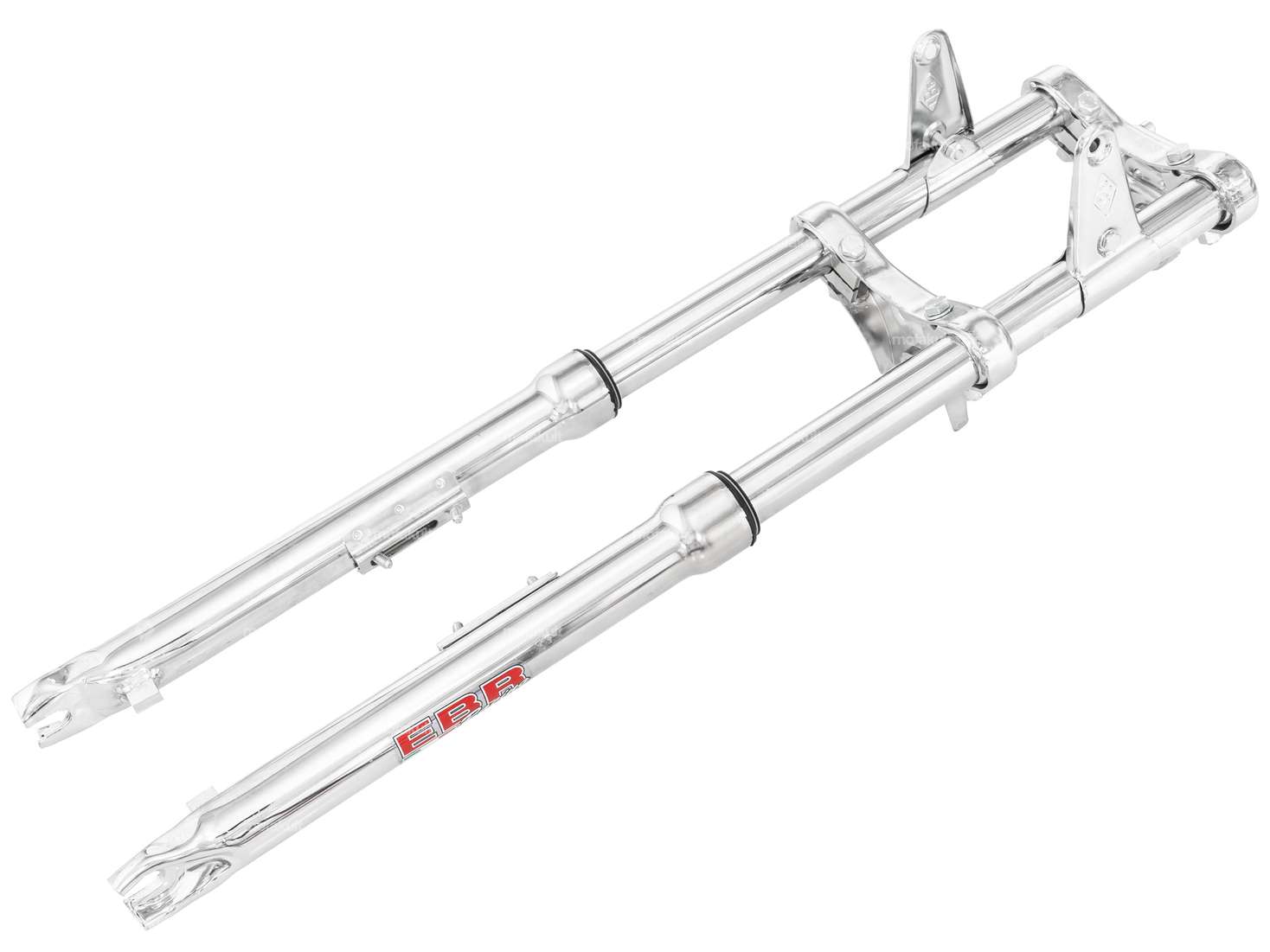

EBR fork reinforced black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Thread type: MF26x1 (fine pitch thread) · Color: Chrome · Color: black · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Adjustable: No · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Total length: 580 mm

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 570 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 23 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

EBR standard fork black | Puch

Color: Chrome · Color: black · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Total length: 570 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Ø spars: 23 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm

EBR telescopic fork hydraulic black | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Total length: 635 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Ø spars: 28 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: Yes · Head tube length: 200 mm · Thread length: 58 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm

GPO screw set fork reinforced Inox

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Number of components: 24 pcs · Drive: External hexagon · Screw head: Hexagon

EBR Fork ULTRA LANG Chrome | Puch

Color: Chrome · Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Total length: 870 mm · Spar end distance (center-center): 138 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Ø spars: 28 mm · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Head tube length: 180 mm · Thread length: 57 mm · Fork bridge - center wheel axle: 642 mm · Distance brake cam to wheel axle center-center: 38 mm

swiing® revival cable guide mudguard black | Puch

Manufacturer: swiing® revival parts · Material: Plastic · Total length: 74 mm · Color: black · Height: 12.5 mm · Hole spacing: 63 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs

GPO control bearing set M26x1 | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Ø inside: 26.8 mm · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø outside: 41 mm · Ø mounting frame: 31 mm · Color: silver

Pedestal bearing shell | Puch

Width: 46 mm · Height: 20 mm · Material: Aluminum · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Total length: 70 mm · Mounting type: Screws · Number of fixing points: 3 pcs · Hole spacing: 41 mm

swiing® revival snap ring low control bearing set

Manufacturer: swiing® revival parts · Material: Spring steel · Thickness: 0.6 mm · Nominal diameter: 20 mm · Nominal diameter: 28 mm · Height: 7 mm · Puch OEM number: 349.1.30.015.1 · Sachs OEM no.: P0521

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Number of components: 1 pcs · Material: Steel · Surface: galvanized (blue) · Ø Stranded wire: 1.25 mm · Cable length: 2200 mm · Nipple shape: Cylinder · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Mounting type: Union nut

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Number of components: 2 pcs · Material: Brass · Material: Steel · Surface: nickel-plated · Thread type: M4x0.7 (standard thread) · Ø outside: 5 mm · Total length: 6 mm · Ø Cable bushing: 1.6 mm · Screw head: Lens head · Thread length: 4 mm · Drive: Slot

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Area of application: Standard · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Drive: External hexagon · Nominal diameter (thread): 26 mm · Height: 13.8 mm · Thread depth: 12 mm · Width across flats: 30 mm

GPO steerer tube nut M26x1 open stem chrome

Manufacturer: GPO · Height: 14 mm · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Ø inside: 22.1 mm · Ø outside: 36.5 mm · Drive: External hexagon · Thread type: MF26x1 (fine pitch thread) · Width across flats: 30 mm · Nominal diameter (thread): 26 mm · Thread depth: 11.5 mm
