For: Puch

23573

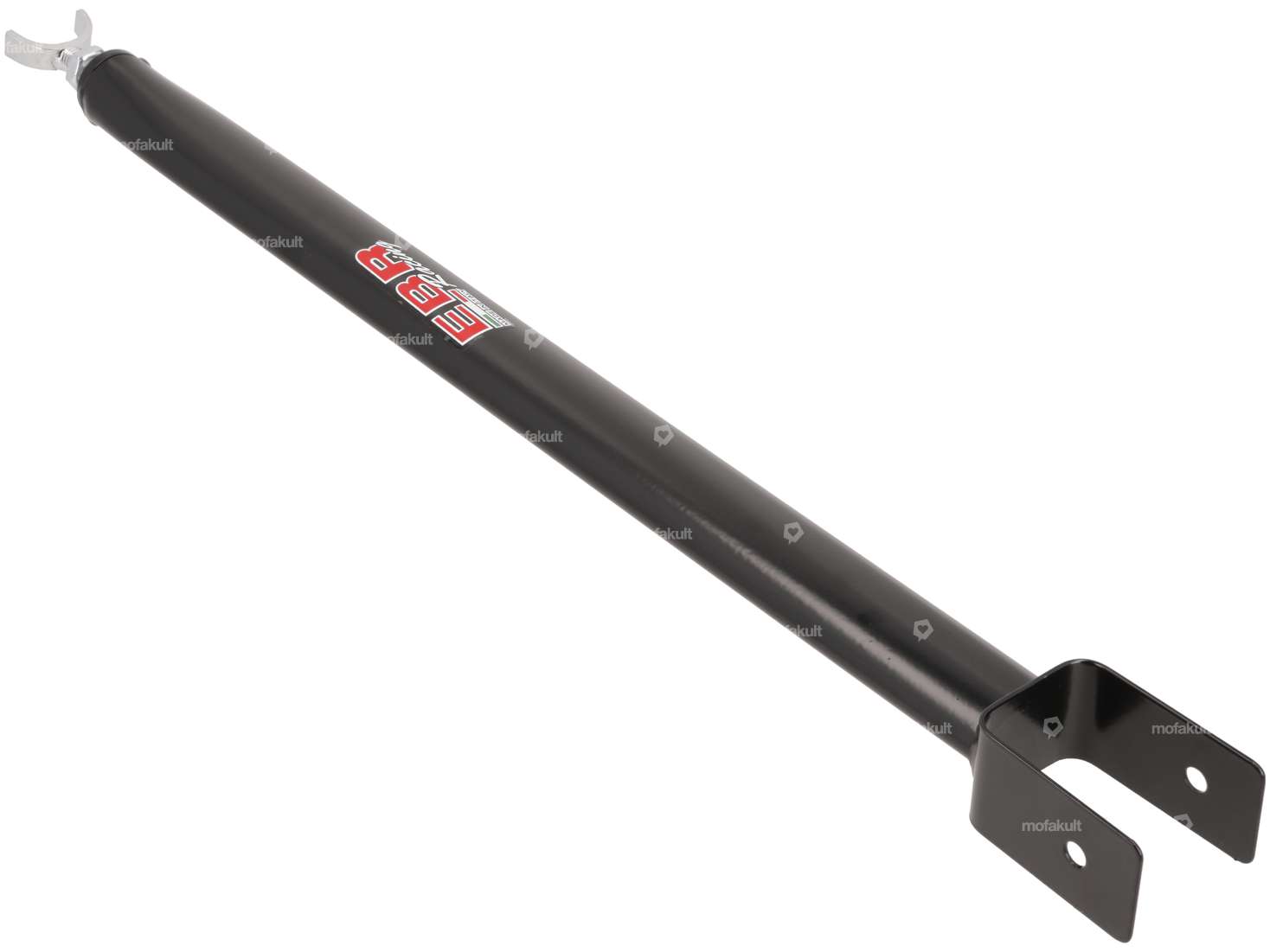

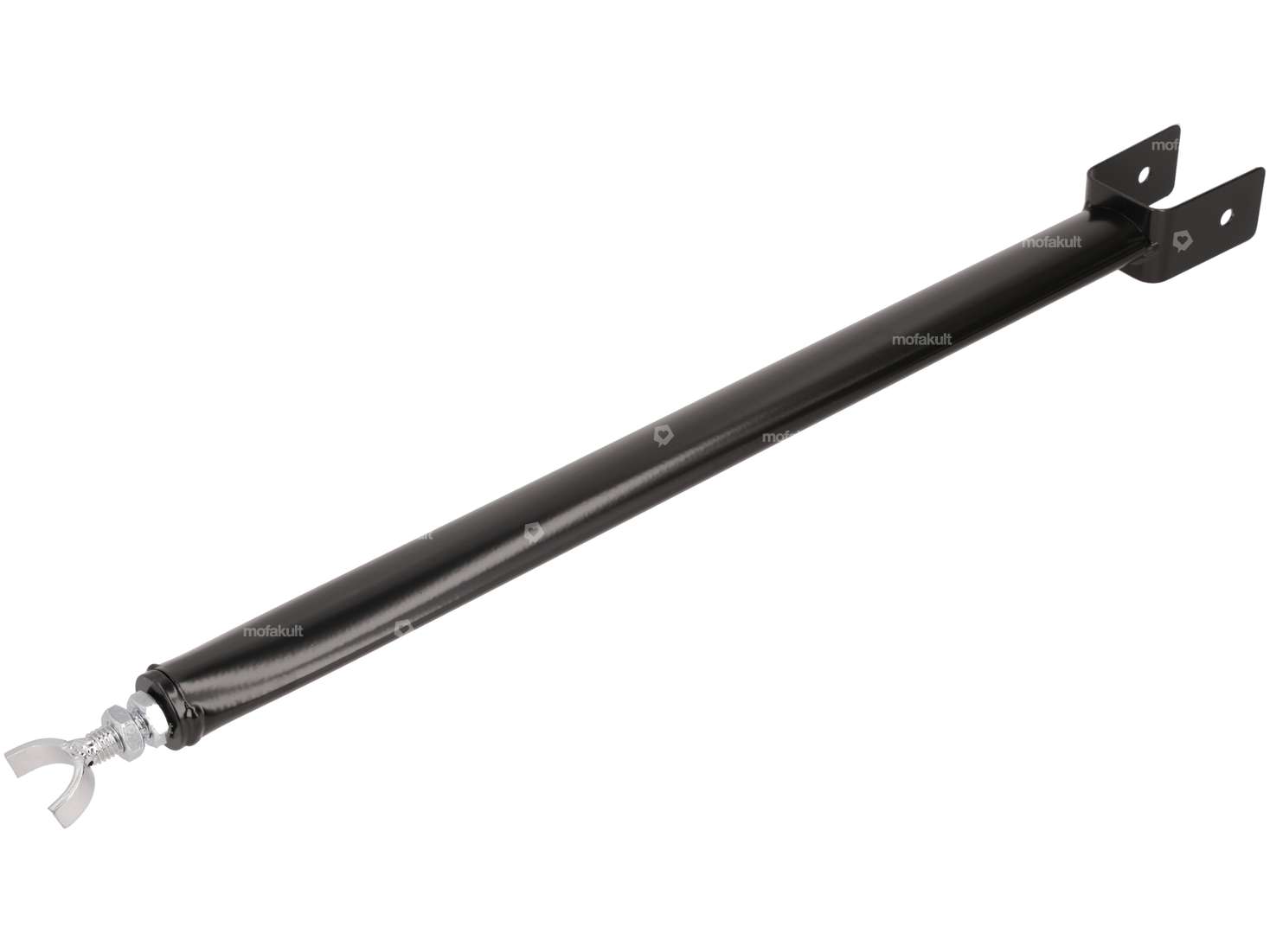

EBR frame brace oval black | Puch Maxi

Home
| Frame
| Frame & add-on parts
| Formwork & frame parts
EUR 59.30

Incl. 25% VAT.

Oval, black painted frame reinforcement from EBR suitable for Puch Maxi S / N mopeds.

Often used on tuned mopeds to protect the frame from deformation due to the extra power.

Length of mounting hole - stop (adjustable): Approx. 56 - 59 cm
Internal dimension at frame mount: 47 mm
Cross-section of strut bar: 40 x 20 mm

Branded product from the Italian manufacturer EBR.

Details

ManufacturerEWC
MaterialSteel
Surfacevarnished
Colorblack
Total length560 - 590 mm
Width40 mm
Hole spacing47 mm
Height20 mm
Number of fixing points3 pcs
Mounting typeNuts & bolts

Suitable for the following models

Puch

E50

Accessories & related products

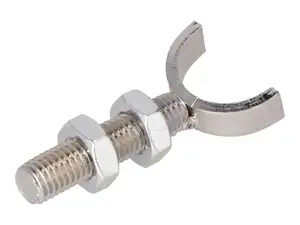

EBR clamping screw frame strut chrome
