For: Puch

35217

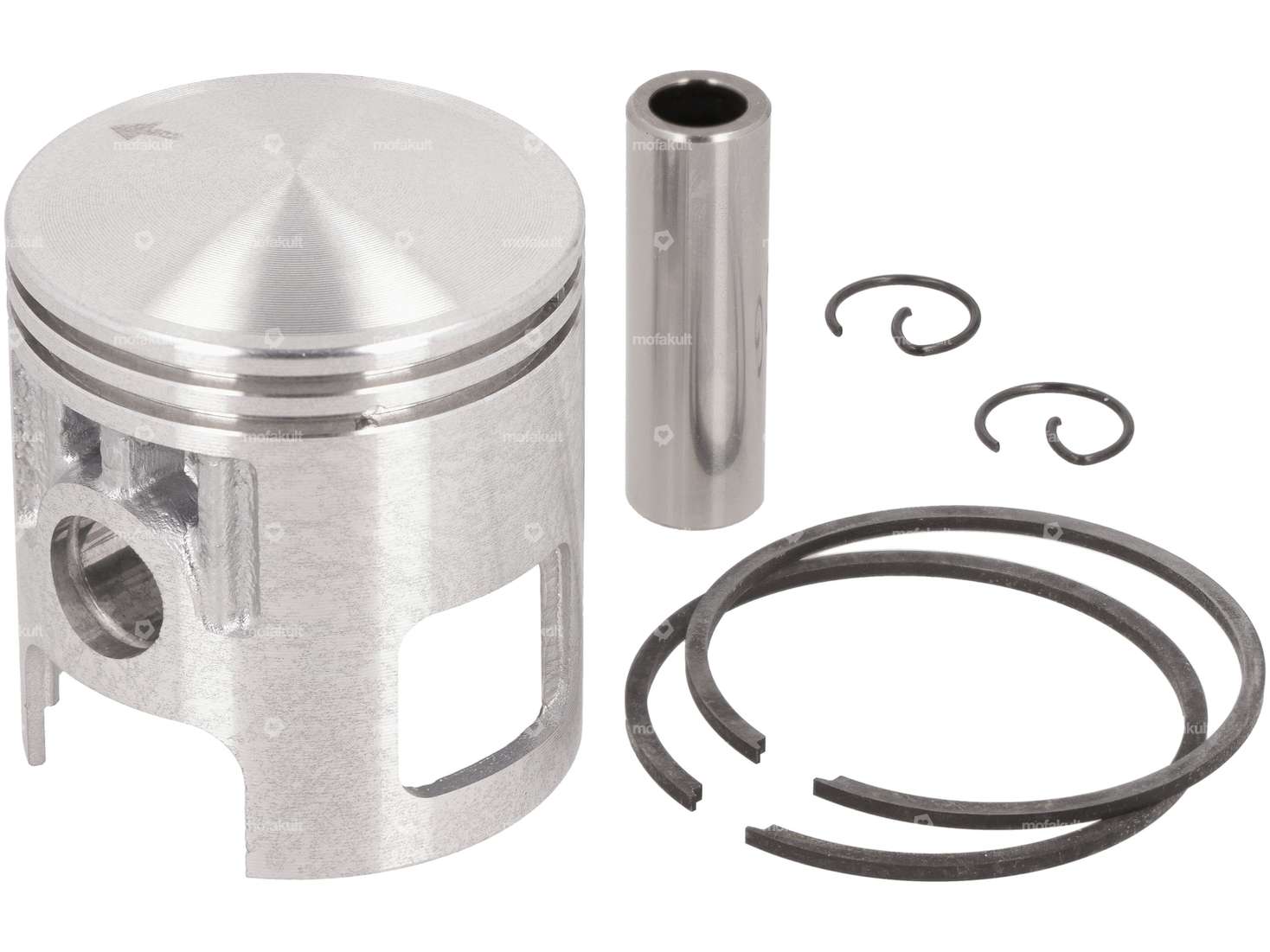

DMP piston 45 mm diaphragm cylinder kit | Puch

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 36.70

Incl. 25% VAT.

Description

45.0 mm piston with two rectangular piston rings with internal fuse (IS) for your Puch moped / moped with the 45 DMP diaphragm racing kit.

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

MaterialAluminum
ManufacturerDMP
Ø outside piston (A)45 mm
Compression height (C)24.4 mm
Curvature (D)3.05 mm
Total piston height (E)50.9 mm
Number of piston rings (F)2 pcs
Nominal diameter45 mm
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Thick piston ring1.85 mm
Ø piston pin (B)12 mm
Weight piston kit90 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)

Accessories & related products

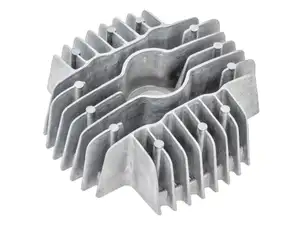

GPO 45 mm cylinder head tuning new version | Puch (AT)
undefined

For: Puch

10064

GPO 45 mm cylinder head tuning new version | Puch (AT)

Manufacturer: GPO · Material: Aluminum · Area of application: Tuning · Ø cylinder: 45 mm · Width: 140 mm · Height: 55 mm · Total length: 135 mm · Number of fixing points: 4 pcs · Decompressor: No

EUR 42.80

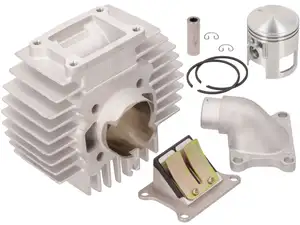

DMP 45 mm cylinder kit incl. diaphragm | Puch
