For: Pony / Cilo (Beta 521 & 512)

26345

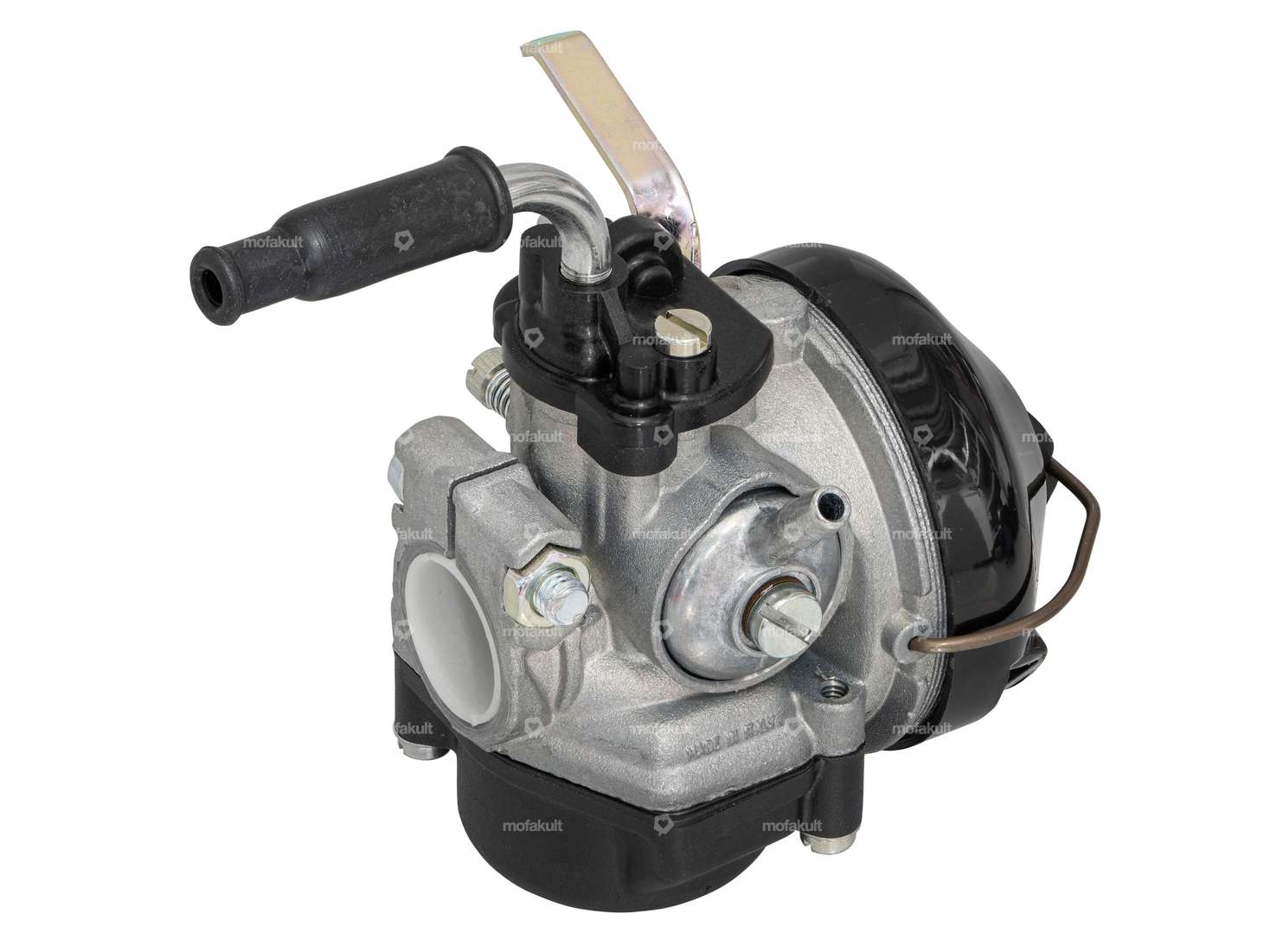

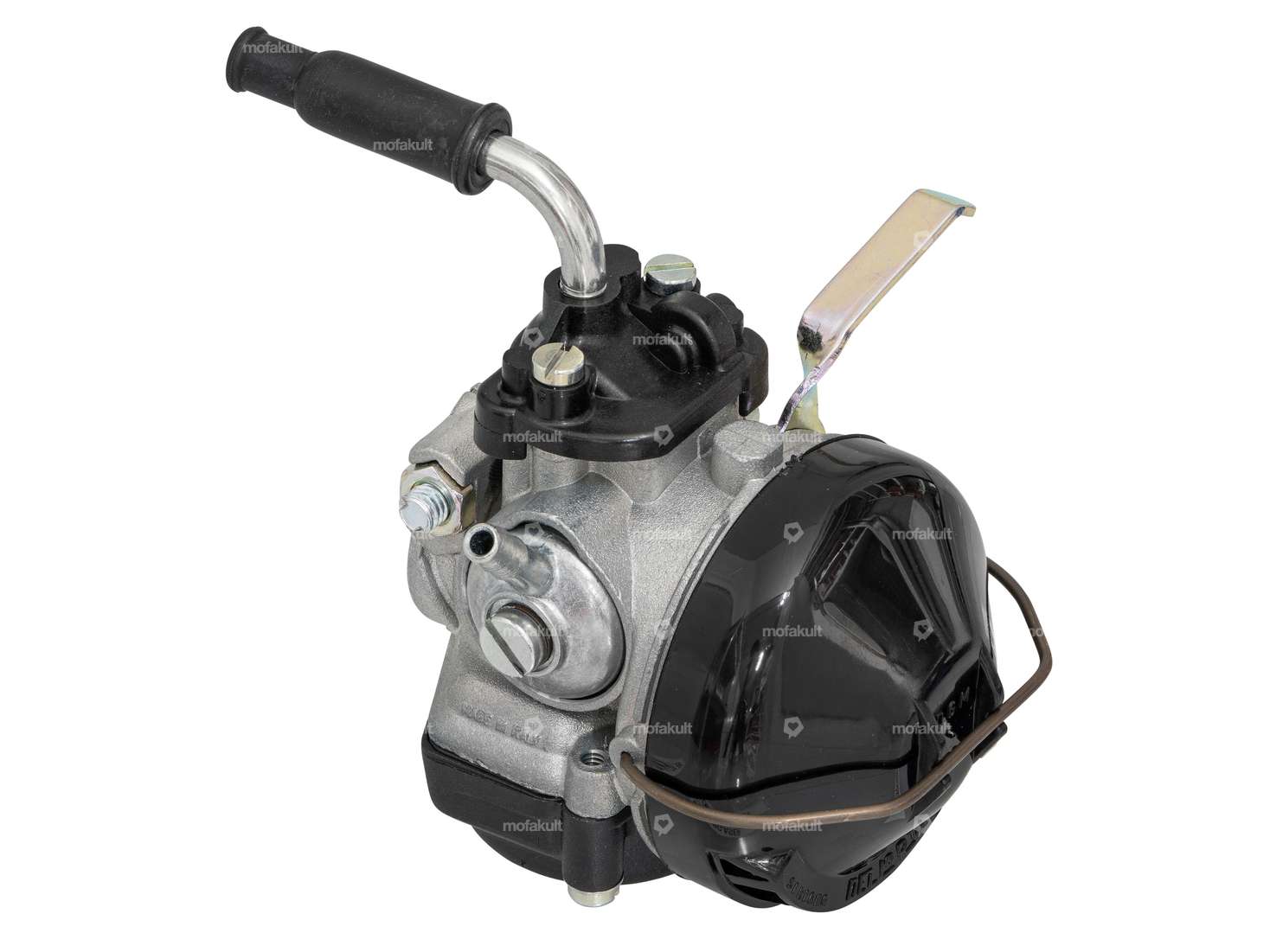

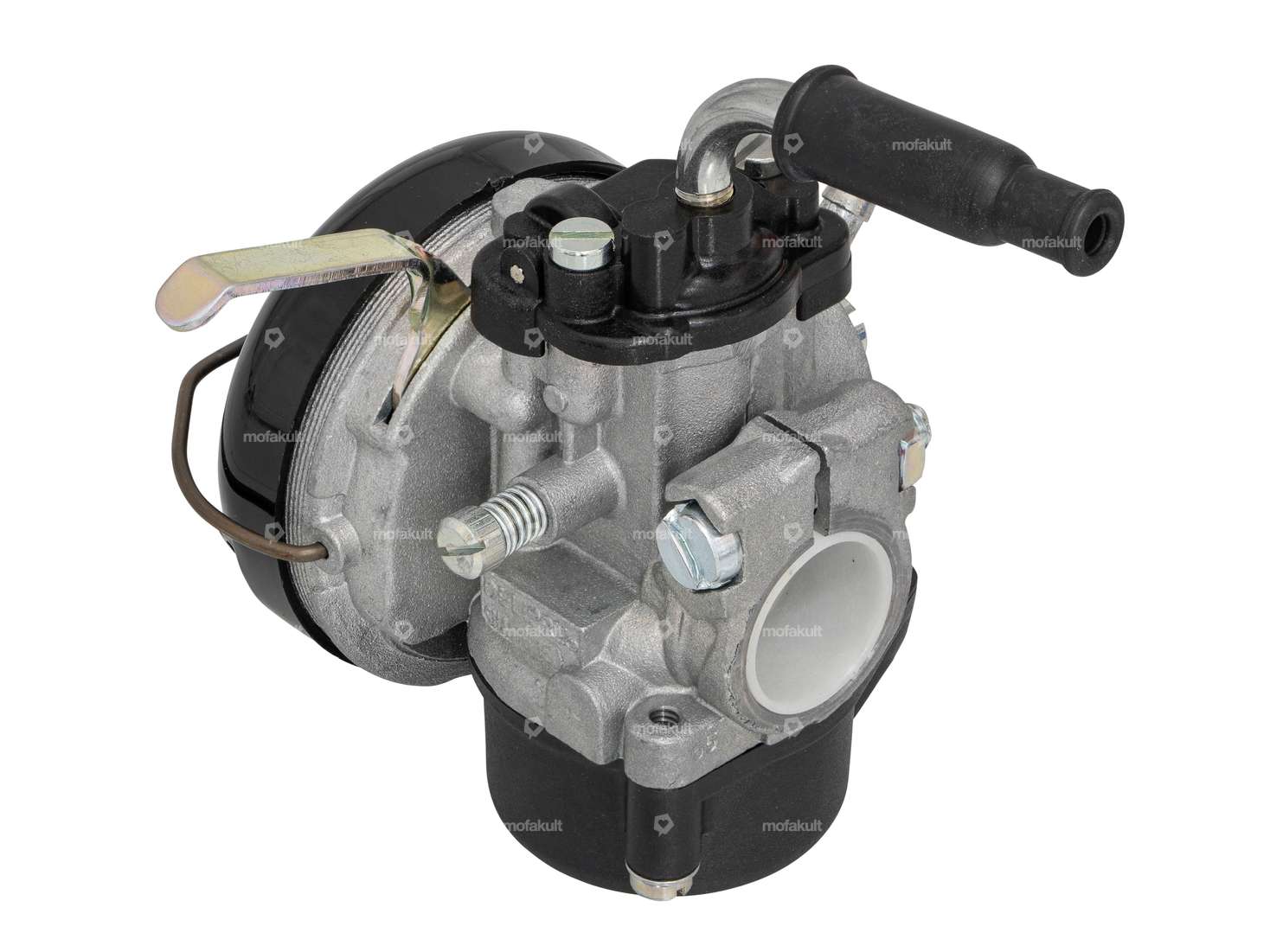

Dell'Orto 16/16 SHA carburetor hand choke | Beta 521 & 512

Home
| Motor
| Carburetor & intake system
| Carburetor
EUR 94.90

Incl. 25% VAT.

The Dell'Orto 16 / 16 SHA racing carburetor suitable for mopeds with Beta 521 engine such as Cilo Cross 521 & 512, Pony Cross 521 and Pony GTX 521.

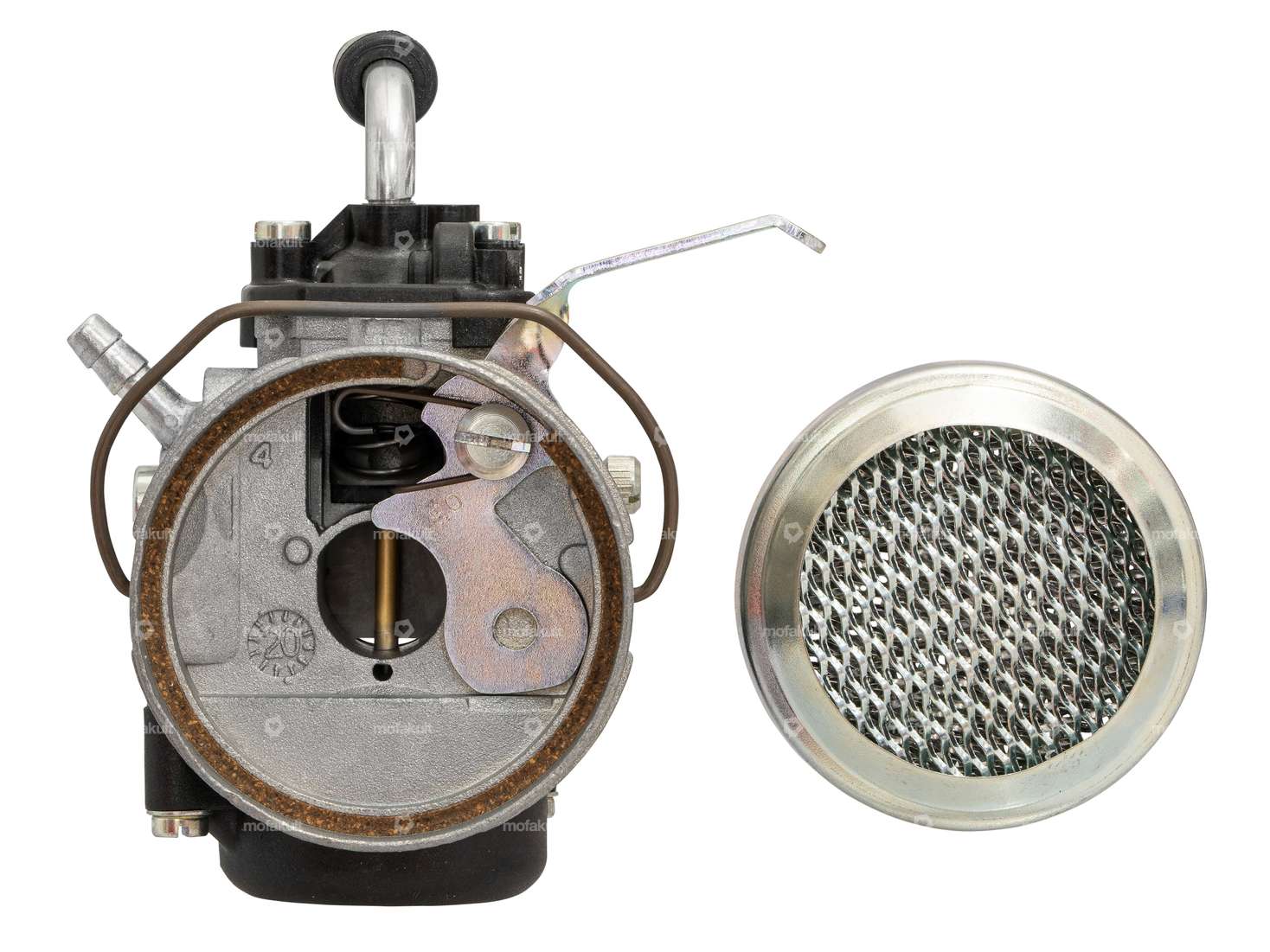

The integrated air filter screen can be easily removed for cleaning purposes.

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle). The special choke lever is easy to operate even when the side covers are fitted.

Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 82
Connection diameter of intake manifold: 19 mm (or 21 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 16 mm
Ø passage on intake manifold side: 16 mm
Total height: 83 mm (without pipe bend)
Total length: 82 mm
Total width: 69 mm

For matching nozzles and alternative air filters, see accessories.

Quality product from the Italian manufacturer Dell'Orto.

Details

MaterialAluminum
ManufacturerDell'Orto
CamouflagedNo
Component group CarburetorCarburetor complete
Carburetor typeSHA
Choke controlHand choke
Colorblack
Total length82 mm
Nominal diameter16 mm
Ø fuel hose connection6 mm, 5.1 mm
Ø without reducing sleeve21 mm
Ø Internal connection19 mm
Ø Inside entrance16 mm
Ø Output inside16 mm
Area of applicationTuning
Ø Air filter connection59 mm
Mixed oil connectionNo
Vacuum connectionNo
Width69 mm
Height83 mm
Nozzle threadM5x0.8 (standard thread)
Mounting typePlug connection clamped
Nozzle size82

Suitable for the following models

Pony / Cilo (Beta 521 & 512)

Beta 512

Beta 521 (engine)
