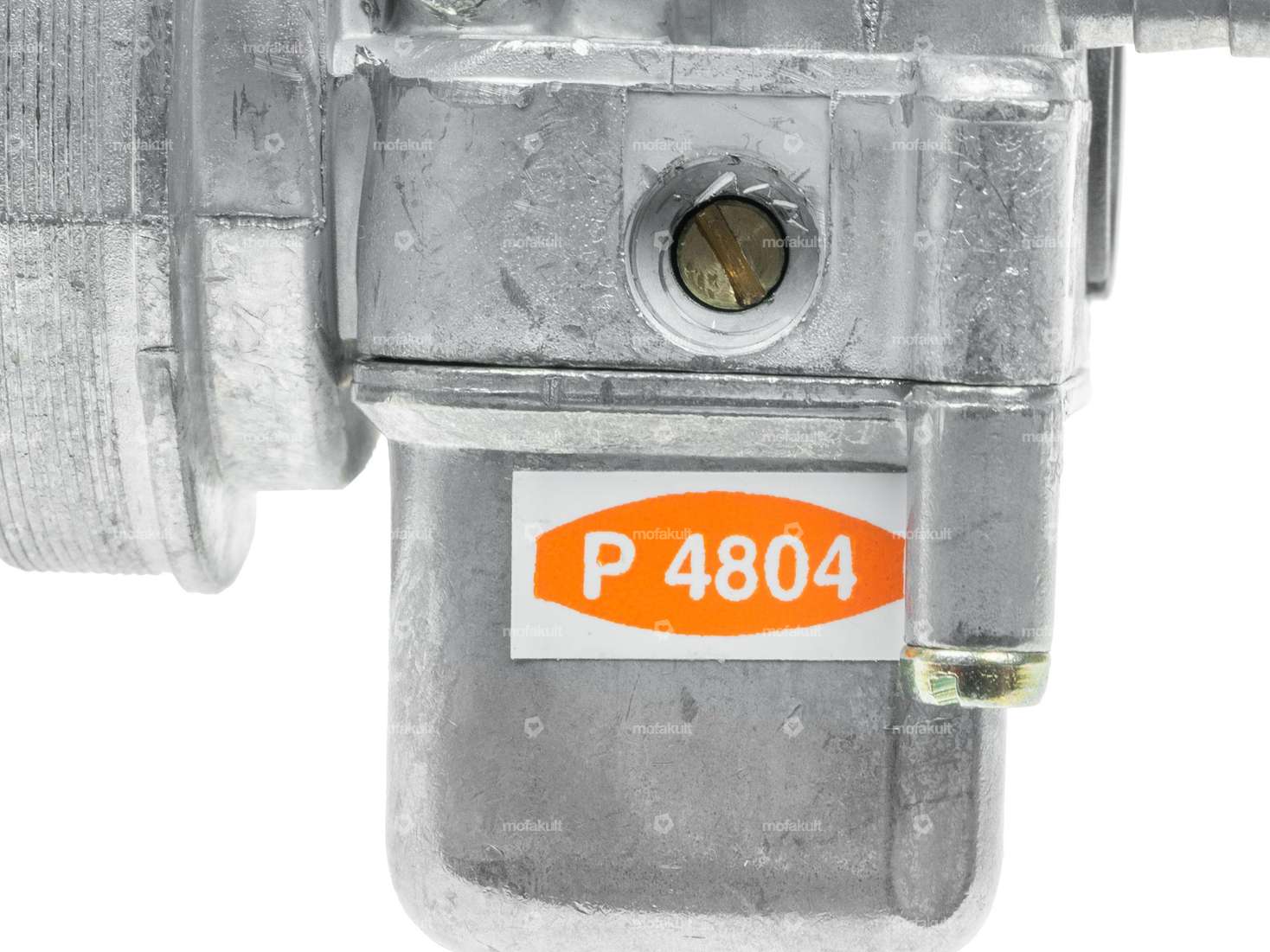

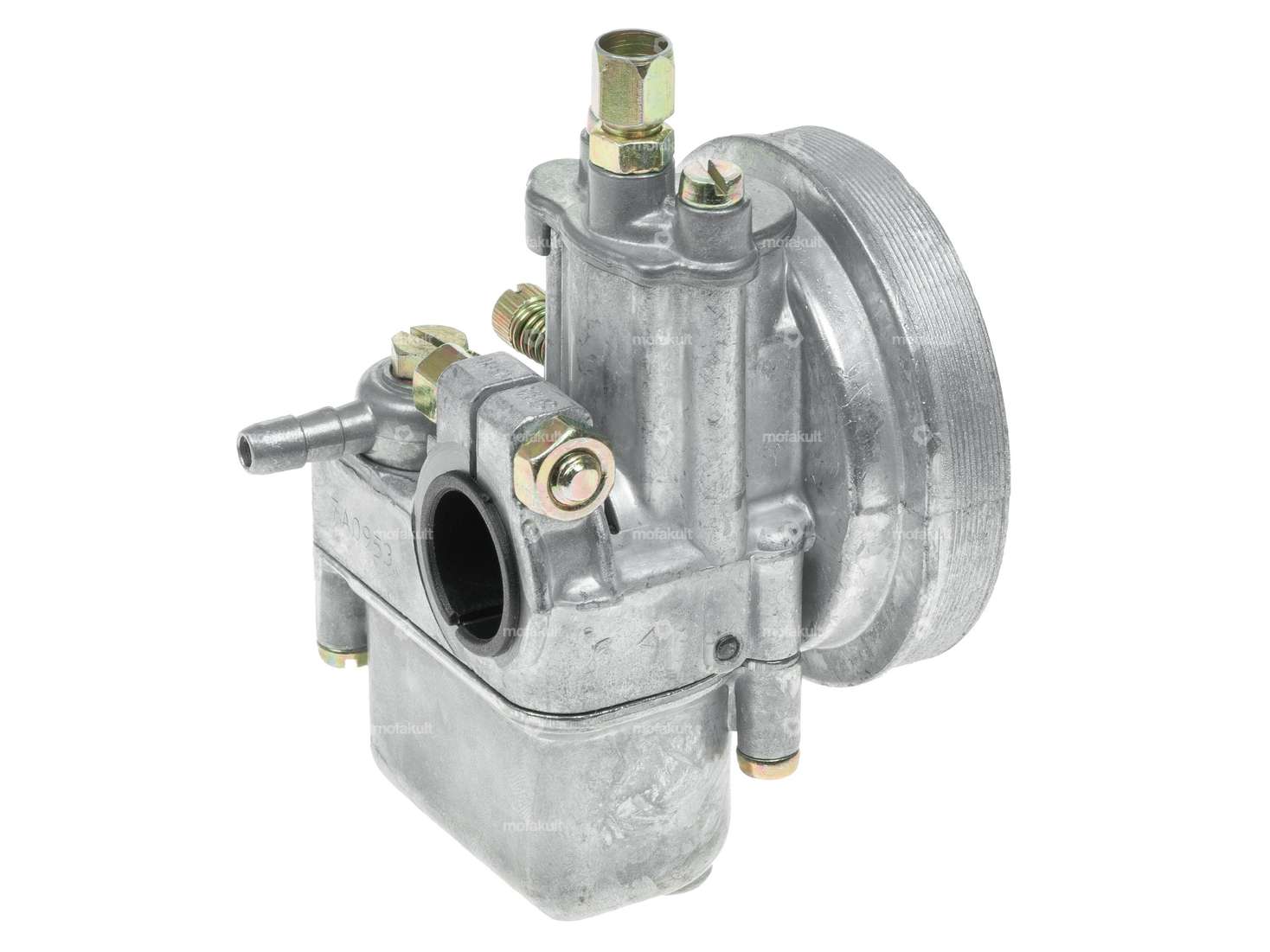

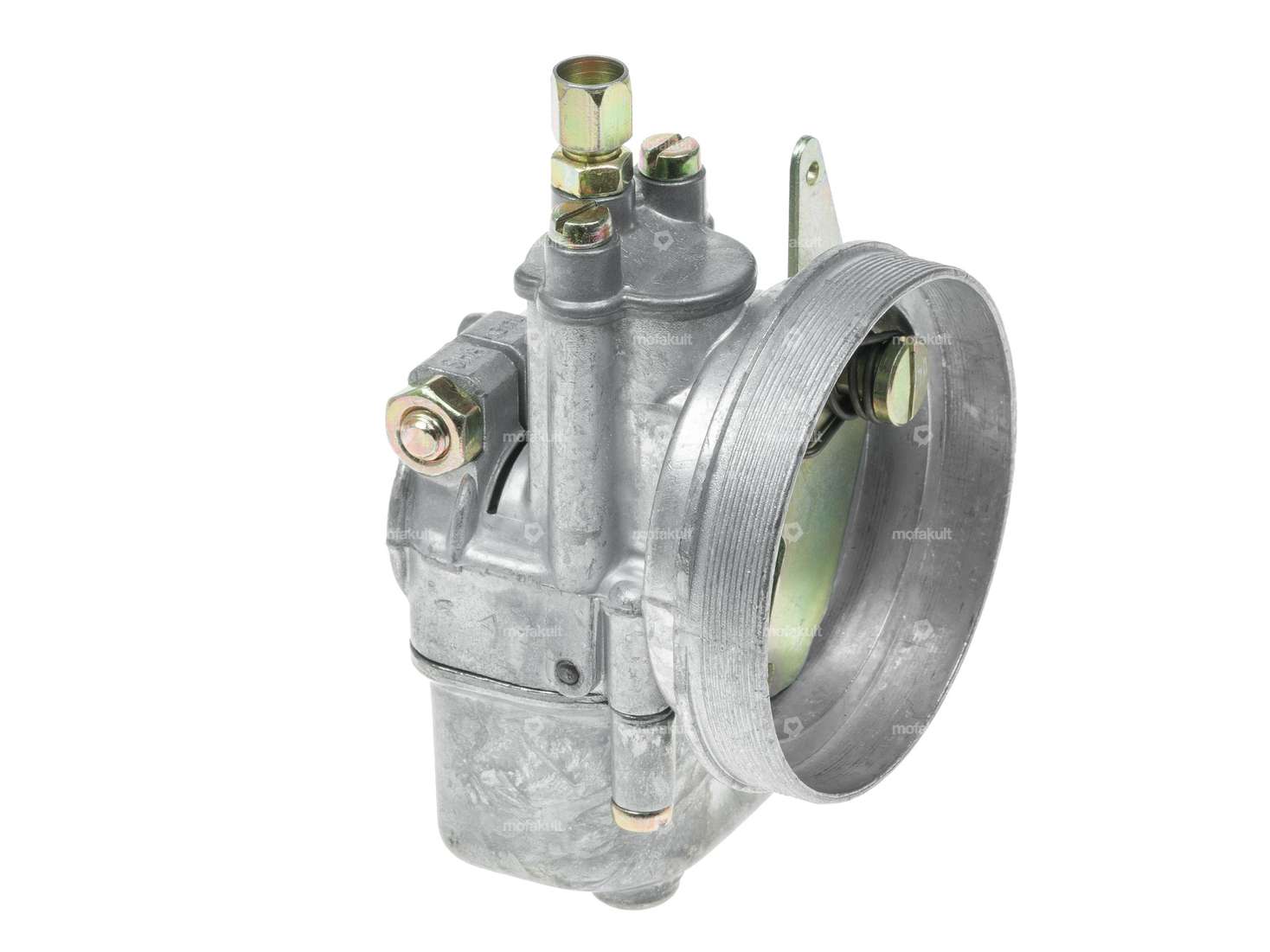

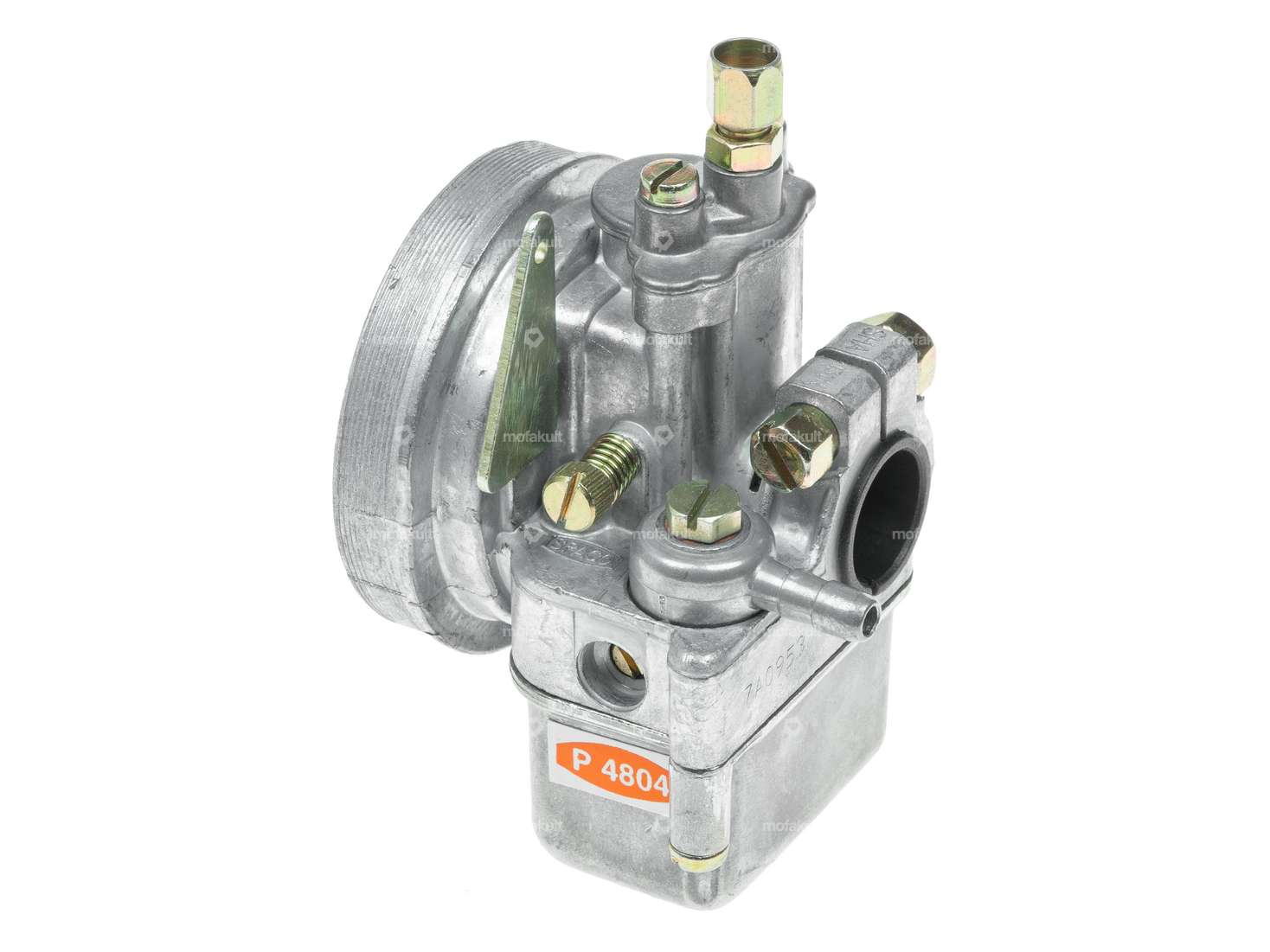

Dell'Orto 13/11 SHA Spaco carburetor hand choke

EUR 122.00

Incl. 25% VAT.

Product description

The Dell'Orto 13 / 11 SHA Spaco carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

The Spaco version has a large air filter connection.

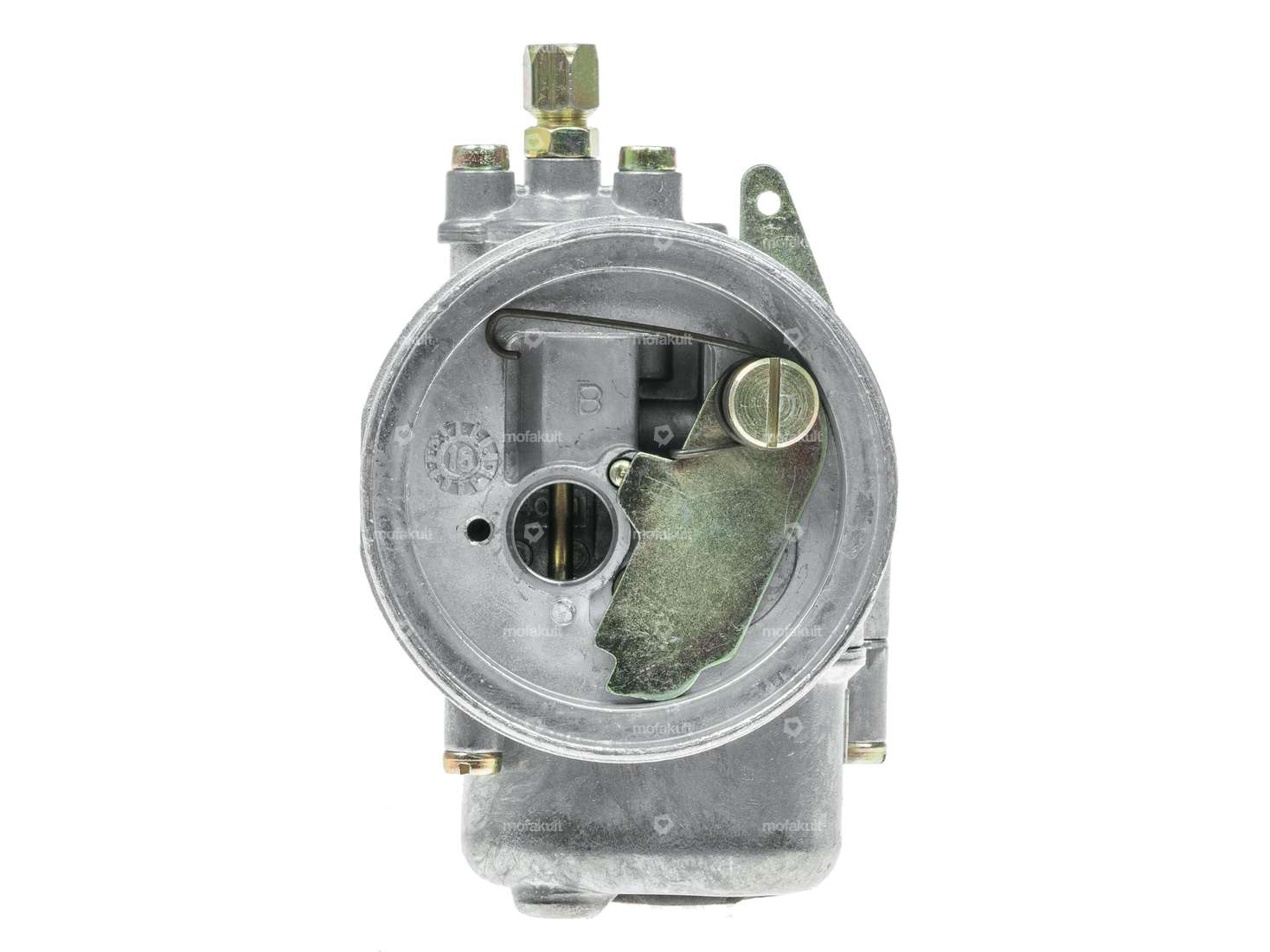

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).

Carburettor type: SHA type 3 (SHA3)
Main diameter (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 59 mm
Ø passage on air filter side: 11 mm
Ø passage on intake manifold side: 13 mm
Total height: 99 mm (without pipe bend)
Total length: 52 mm
Total width: 65 mm

Matching nozzles, intake manifolds and alternative air filters can be found in the accessories section.

Quality product from the Italian manufacturer Dell'Orto.

ManufacturerDell'Orto
CamouflagedNo
Component group CarburetorCarburetor complete
Colorblack
MaterialAluminum
Carburetor typeSHA (Piaggio)
Nominal diameter13 mm, 11 mm
Total length52 mm
Width65 mm
Ø without reducing sleeve18 mm
Height99 mm
Ø Internal connection16 mm
Ø Inside entrance11 mm
Ø Output inside13 mm
Ø Air filter connection59 mm
Ø fuel hose connection6 mm, 5.2 mm
Mixed oil connectionNo
Mounting typePlug connection clamped
Area of applicationOriginal, Tuning
Vacuum connectionNo
Choke controlHand choke
Nozzle threadM5x0.8 (standard thread)
Nozzle size48
