Cylinder head fan-cooled NOS | Sachs 50/2, 50/3

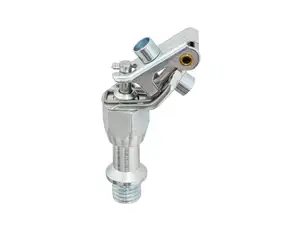

Karcoma decompressor M10x1.5 45° NOS

Manufacturer: Karcoma · Material: Steel · Thread type: M10x1.5 (standard thread) · Area of application: Standard · Surface: galvanized (blue) · Total length: 64 mm · Thread length: 9 mm · Angle: 45 ° · Width across flats: 14 mm

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Number of components: 12 pcs · Area of application: Standard · Color: silver · Total length: 34 mm · Ø shaft: 5.85 mm · Width across flats: 10 mm · Screw head: Hexagon · Thread type: M6x1 (standard thread) · Drive: External hexagon · Thread length: 22 mm · Shank: Yes · Shank length: 8 mm · Strength class: 10.9

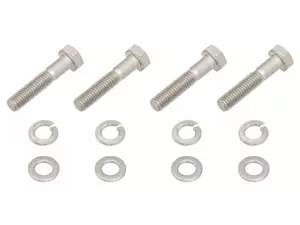

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

Total length: 34 mm · Manufacturer: swiing® revival parts · Number of components: 12 pcs · Material: Chrome steel (colloquially known as stainless steel) · Drive: External hexagon · Screw head: Hexagon · Ø shaft: 5.85 mm · Shank: Yes · Area of application: Standard · Shank length: 8 mm · Thread type: M6x1 (standard thread) · Width across flats: 10 mm · Thread length: 22 mm

Cylinder head wind cooled NOS | Sachs 50/2

Manufacturer: Sachs · Ø outside: 105 mm · Area of application: Original · Pony OEM number: A1064 · Sachs OEM no.: 0213 121 105 · Alternative version of the Sachs OEM number: 0213 033 003

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette

Manufacturer: Sachs · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 38 mm · Hole spacing inlet: 67 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 51 x 40 · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Area of application: Original · Number of fixing points: 4 pcs

GPO decompressor M10x1.5 45°

Manufacturer: GPO · Material: Steel · Thread type: M10x1.5 (standard thread) · Area of application: Standard · Surface: galvanized (blue) · Ø outside: 14 mm · Total length: 64 mm · Thread length: 9 mm · Angle: 45 °

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Total length: 135 mm · Material: Aluminum · Surface: sandblasted · Width: 125 mm · Ø cylinder: 38 mm · Height: 55 mm · Candle thread: short · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Standard

Airsal gasket set 38 mm | Puch

Manufacturer: Airsal · Number of components: 4 pcs · Area of application: Tuning · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm

0.45 mm inlet seal oil paper (32 mm hole spacing)

Place of use: Admission · Material: Oiled paper · Ø outlet inside: 14.5 mm · Thickness: 0.45 mm · Hole spacing inlet: 32 mm

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

Manufacturer: Meteor · Thick piston ring: 1.6 mm · Ø outside piston (A): 37.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Nominal diameter: 38 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Weight piston kit: 79 g · Pony OEM number: A2772 · Pony OEM number: A4358 · Sachs OEM no.: 0286 377 010 · Sachs OEM no.: 0286 378 005

swiing® revival crankshaft "Original" with mounted bearings | Puch E50

Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Thread type: MF10x1 (fine pitch thread) · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Thread length: 11 mm · Thread length: 15 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 873 g · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835

swiing® revival inlet gasket 0.45 mm oil paper | Sachs 503

Manufacturer: swiing® revival parts · Material: Oiled paper · Ø outlet inside: 15.5 mm · Thickness: 0.45 mm · Place of use: Admission · Hole spacing inlet: 32 mm · Pony OEM number: A1886 · Sachs OEM no.: 0250 151 000

swiing® revival inlet gasket cylinder "swiing" | Sachs 503

Manufacturer: swiing® revival parts · Thickness: 2 mm · Place of use: Admission · Ø cylinder: 38 - 40 mm
