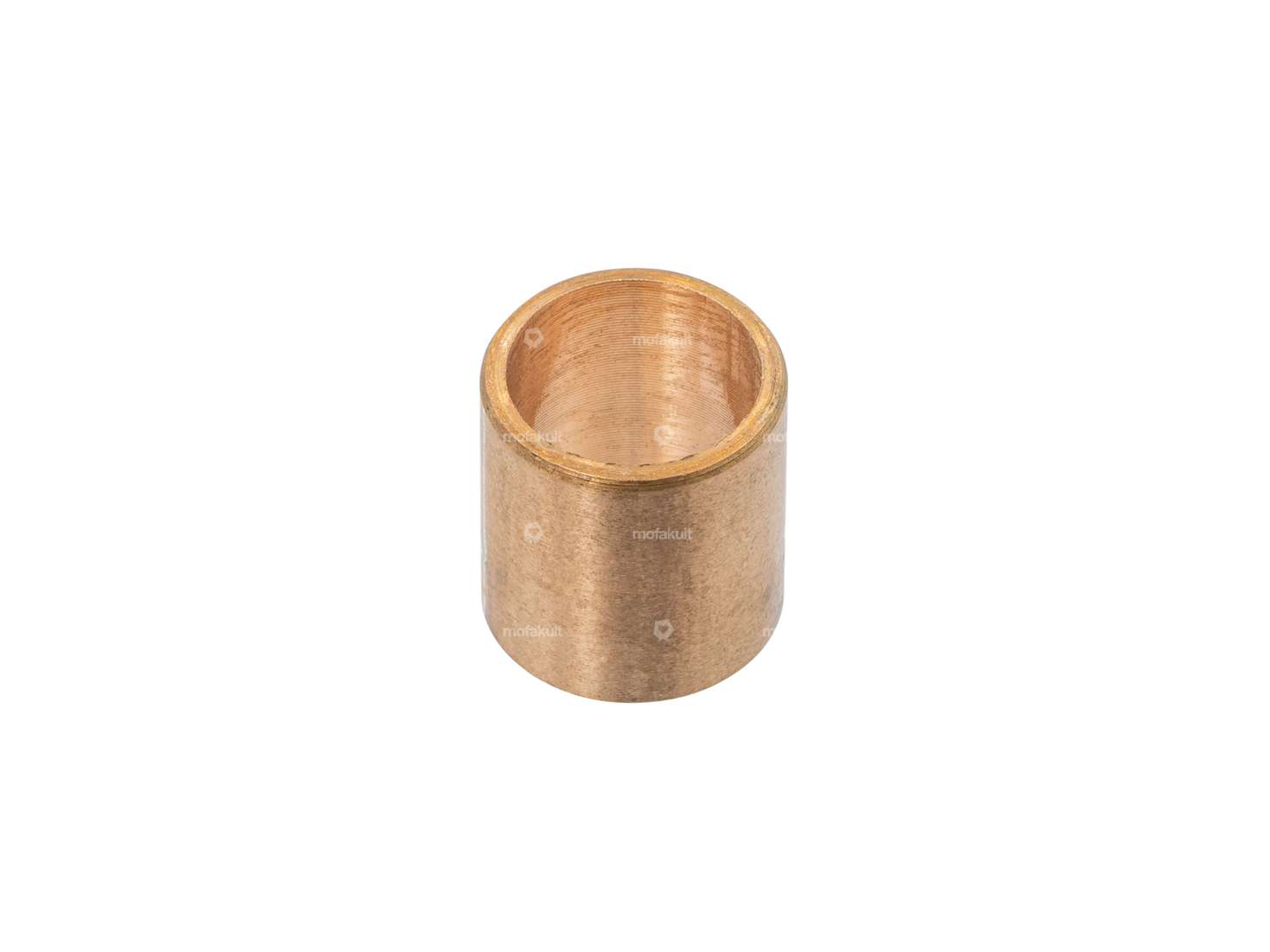

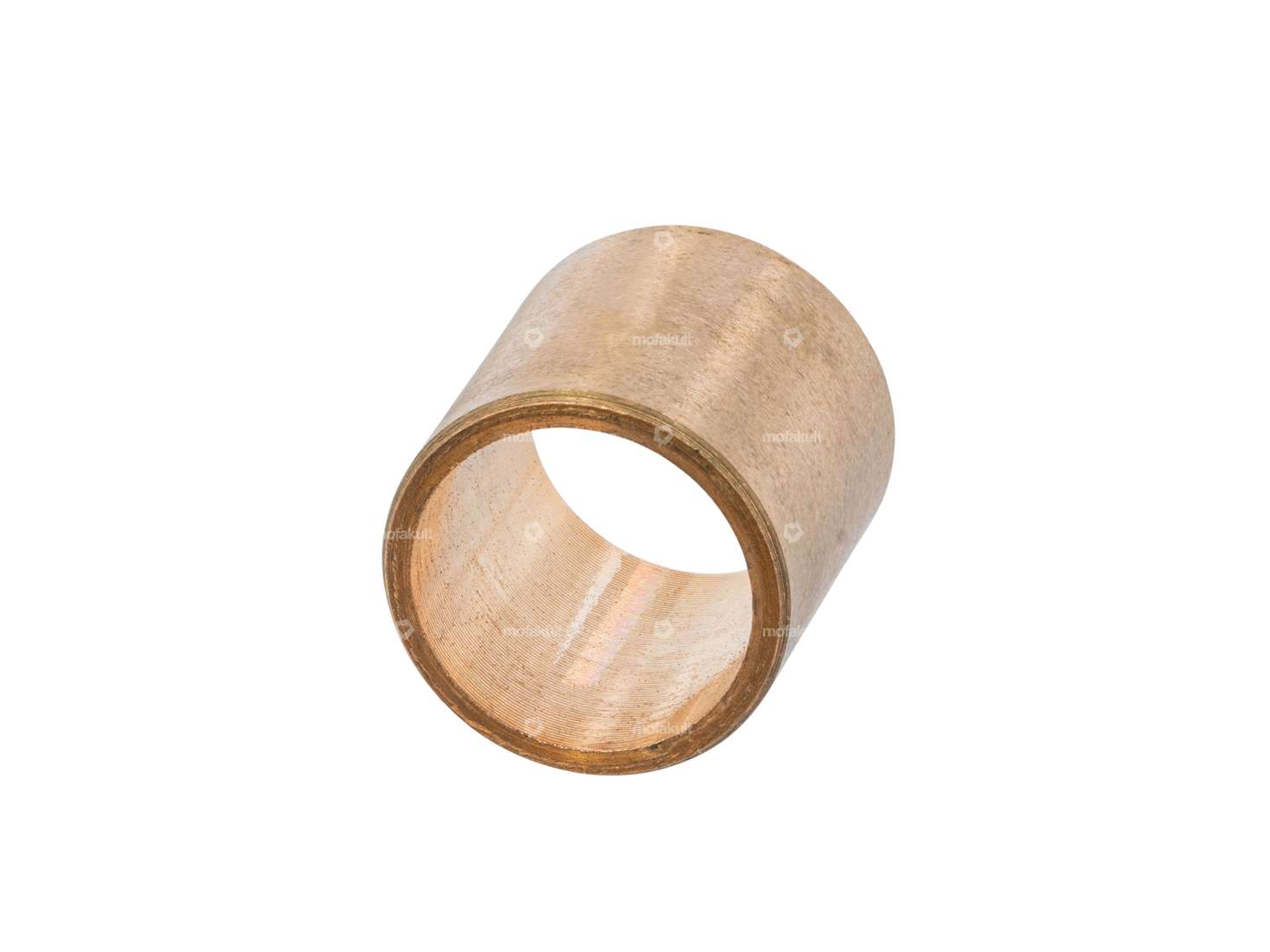

Original connecting rod bushes for Puch crankshafts with 10 mm piston pin.
Outer diameter: 12 mm
Nominal inner diameter: 10 mm
Ø Inner (raw): 9.9 mm
Length: 13 mm
Attention: To ensure a perfect fit of the piston pin, the bushing must be reamed to the correct size due to shrinkage after pressing in.
Suitable reamers can be found in the accessories section.
| Manufacturer | Puch |
| Material | special bearing bronze |
| Total height | 13 mm |
| Nominal diameter inside | 10 mm |
| Ø inside | 10 mm |
| Ø outside | 12 mm |
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
