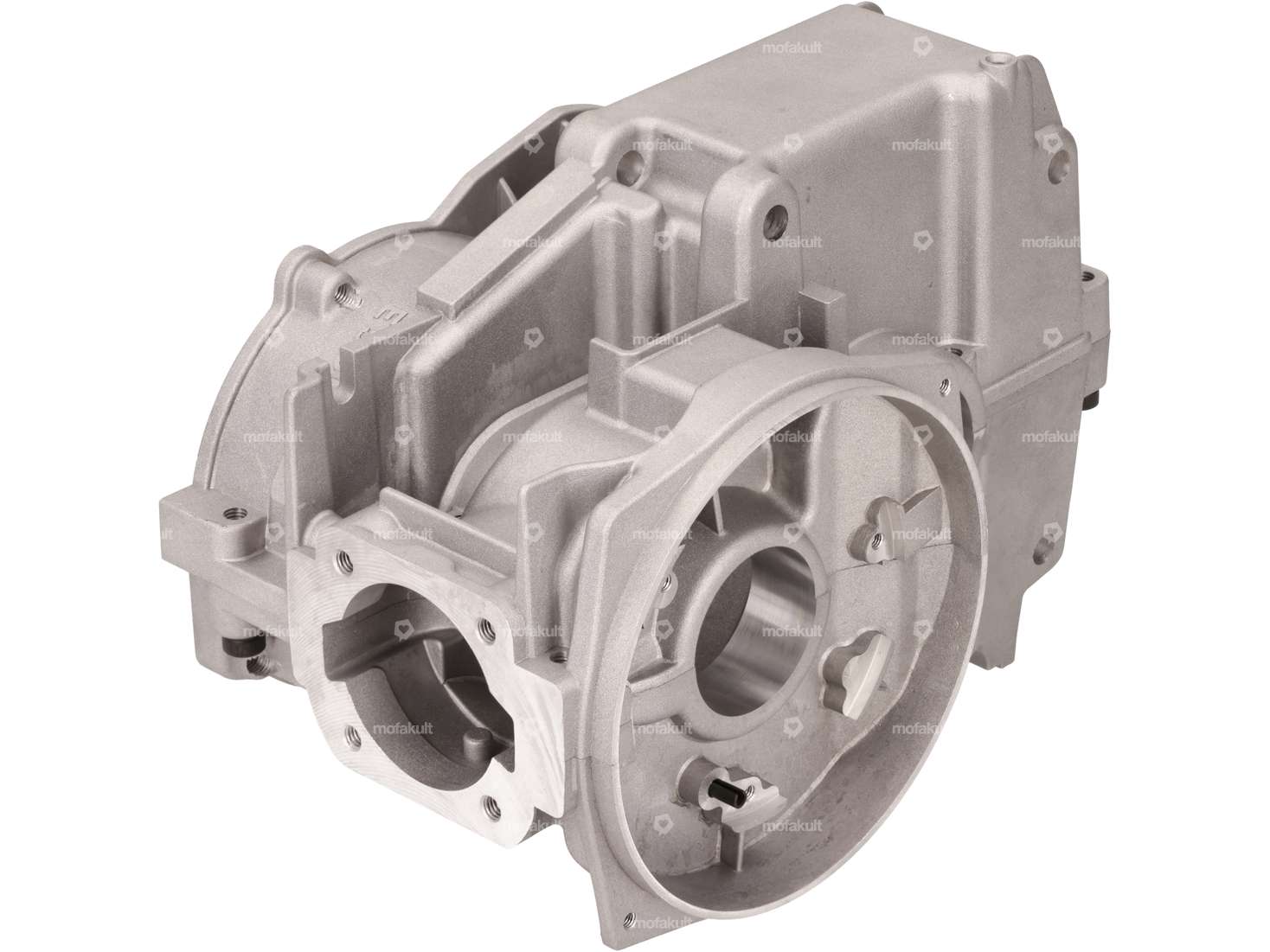

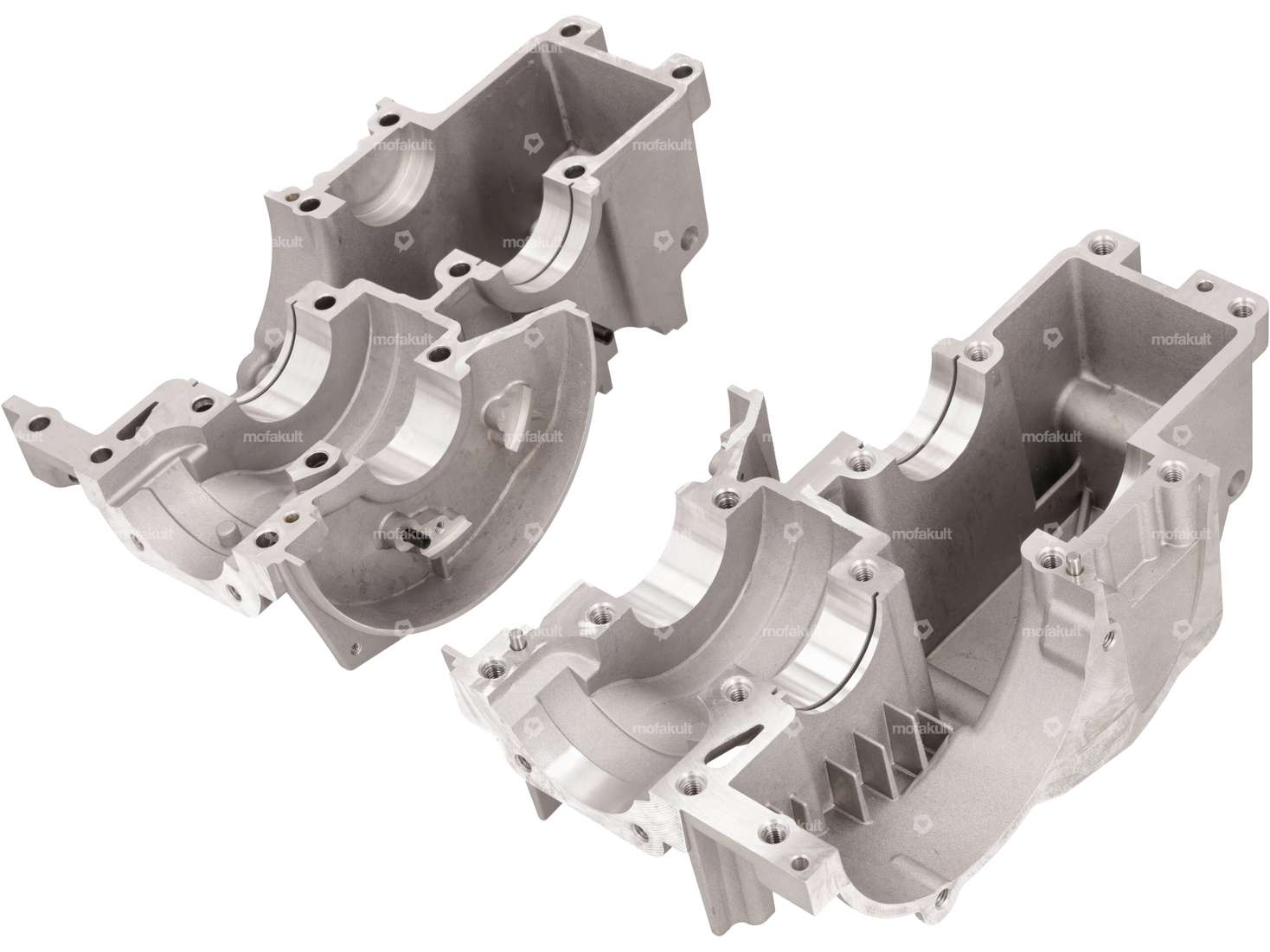

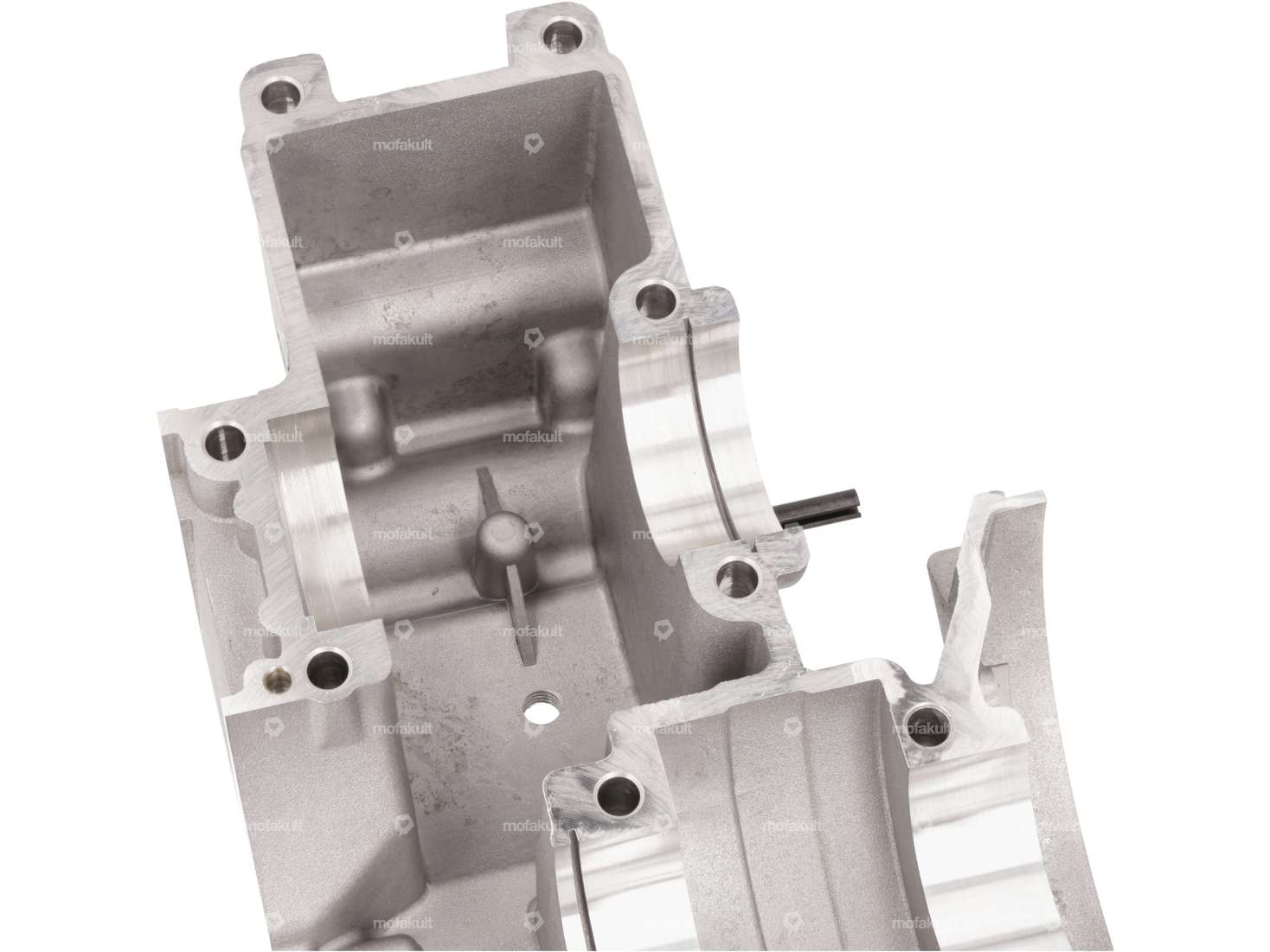

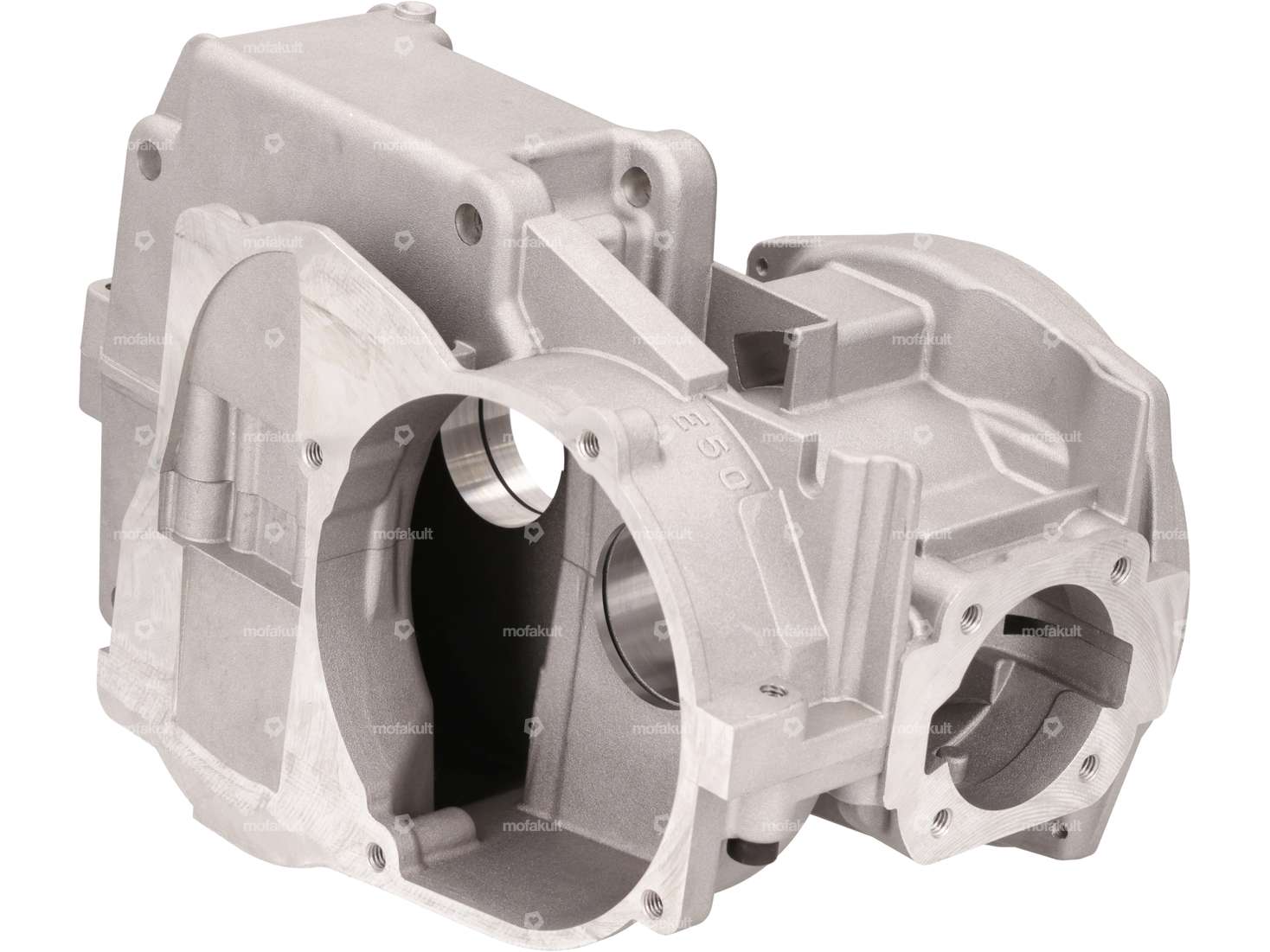

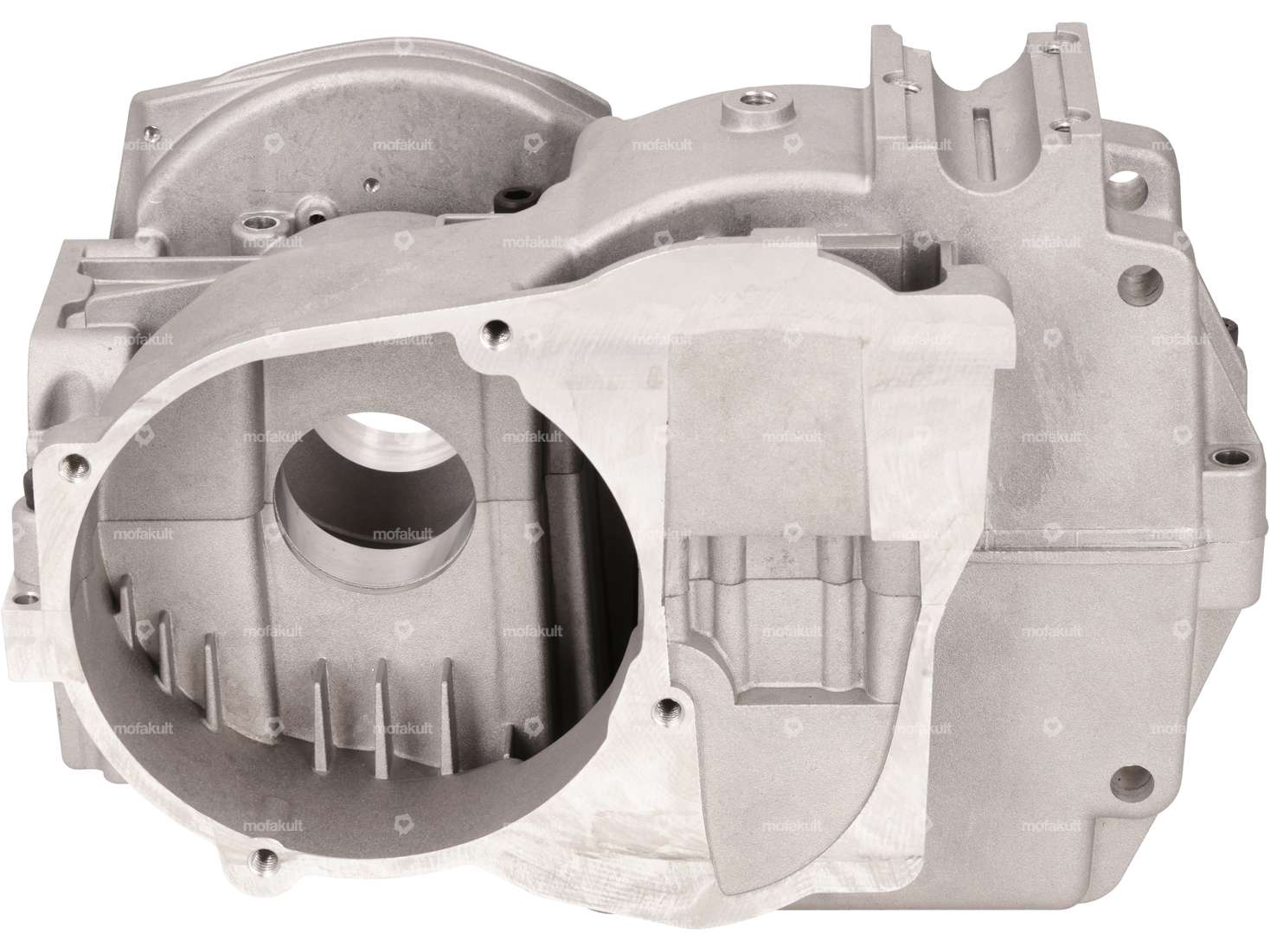

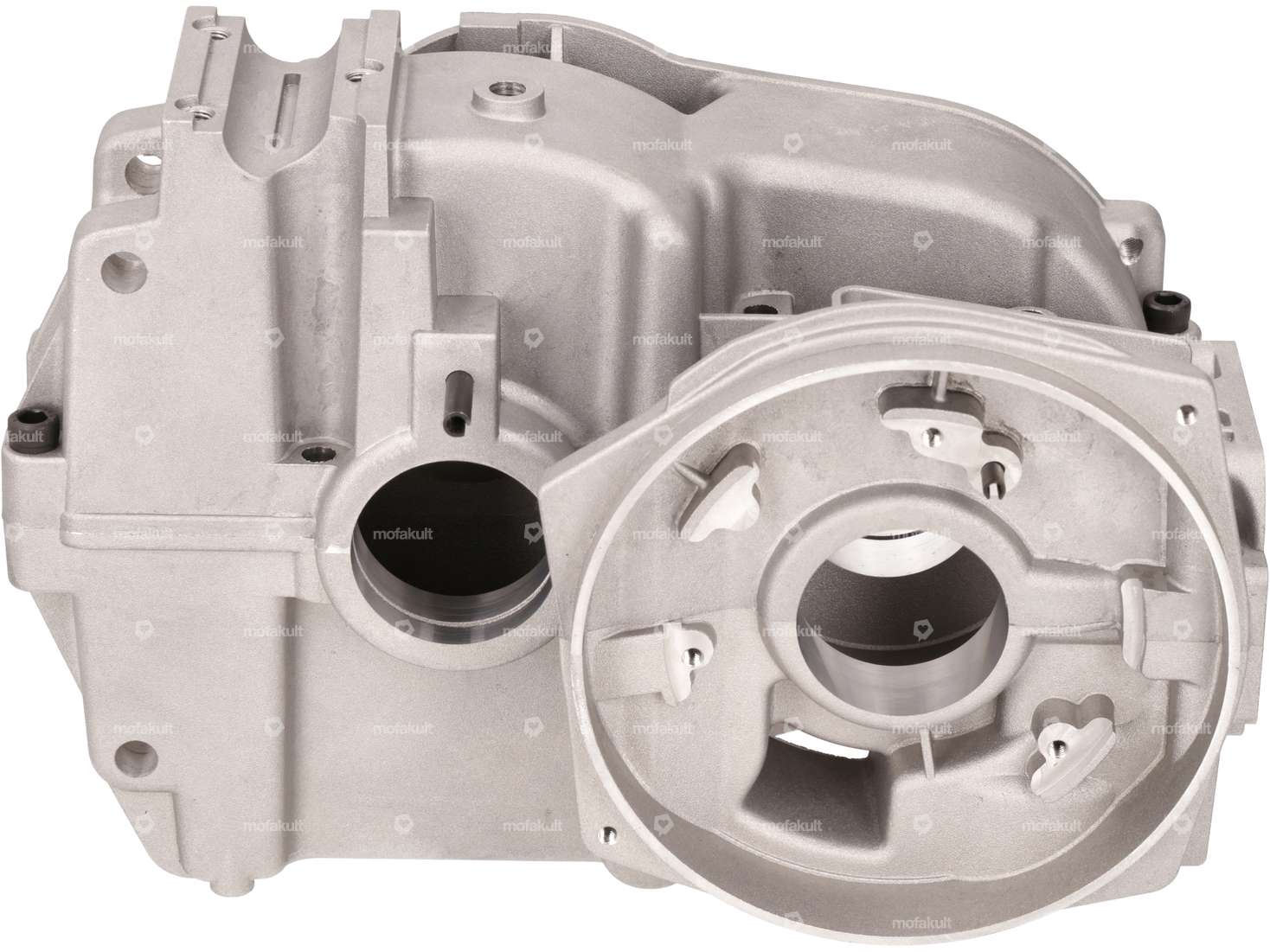

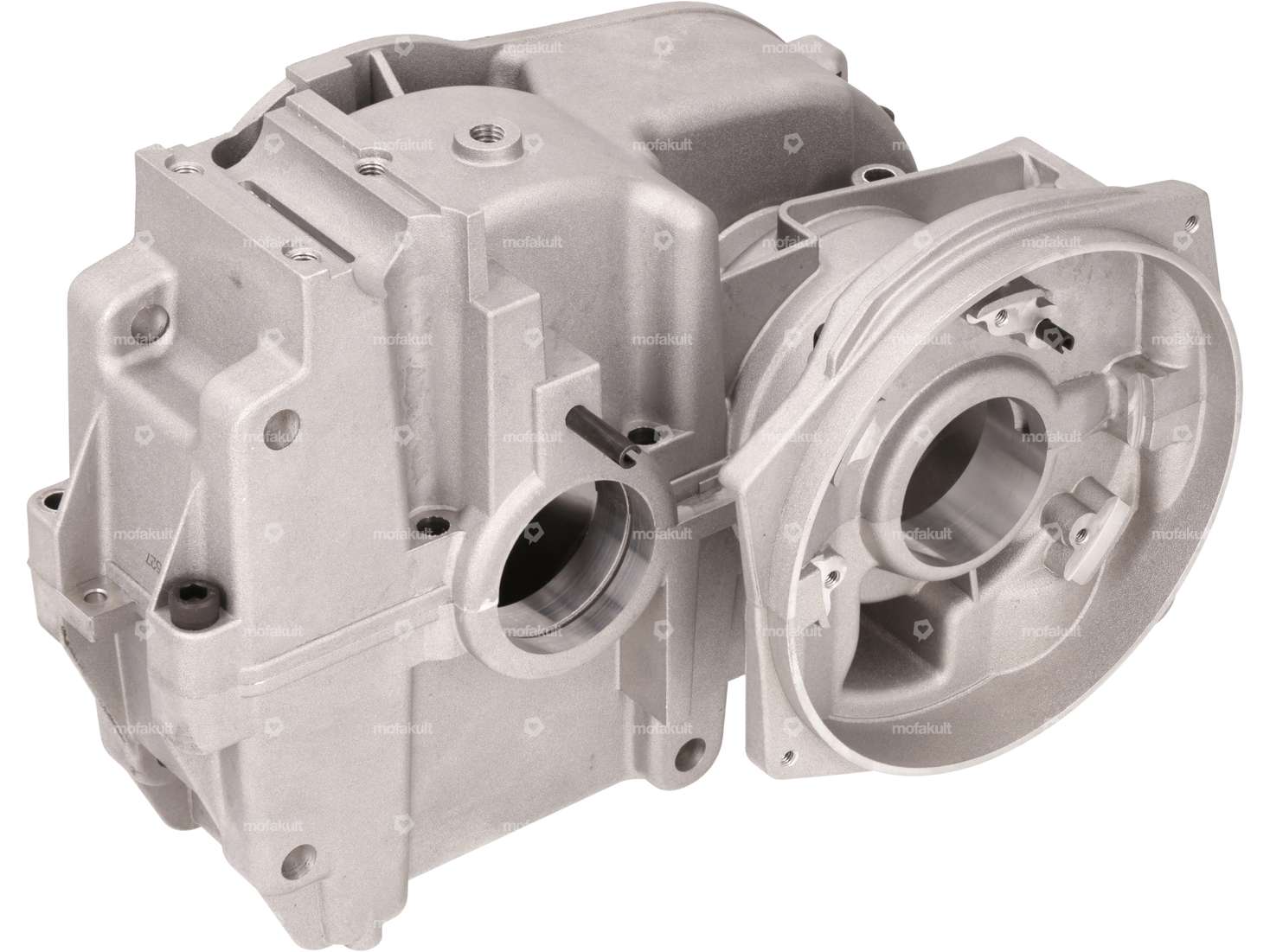

Reproduction of the original E50 engine housing with 4 bearings for your Puch moped / moped.
The dimensions correspond to the original housing. This means that all add-on parts, such as rods, end plates, crankshafts or cylinders, can be used.
As with the original, a cylinder and pinion lock has been installed, which must be removed when fitting tuning parts. The sealing surface for the cylinder base has been slightly widened, as with the ADDY housing. This gives you more material for adjustments when fitting a racing cylinder.
The housing parts are numbered. The engine number can be stamped in by the owner as required.
Material: Cast aluminum
Ø Cylinder neck (max.): 48 mm
Cylinder hole pattern: 44 x 44 mm
Pin thread: M6x1 mm
Matching attachments and a racing case for your Puch Maxi can be found in the accessories section.
Original Puch spare part number: 349.3.10.332.0
Branded product from the manufacturer AKOA.
| Manufacturer | AKOA |
| Material | Aluminum |
| Puch OEM number | 349.3.10.332.0 |
| Puch | E50 |
