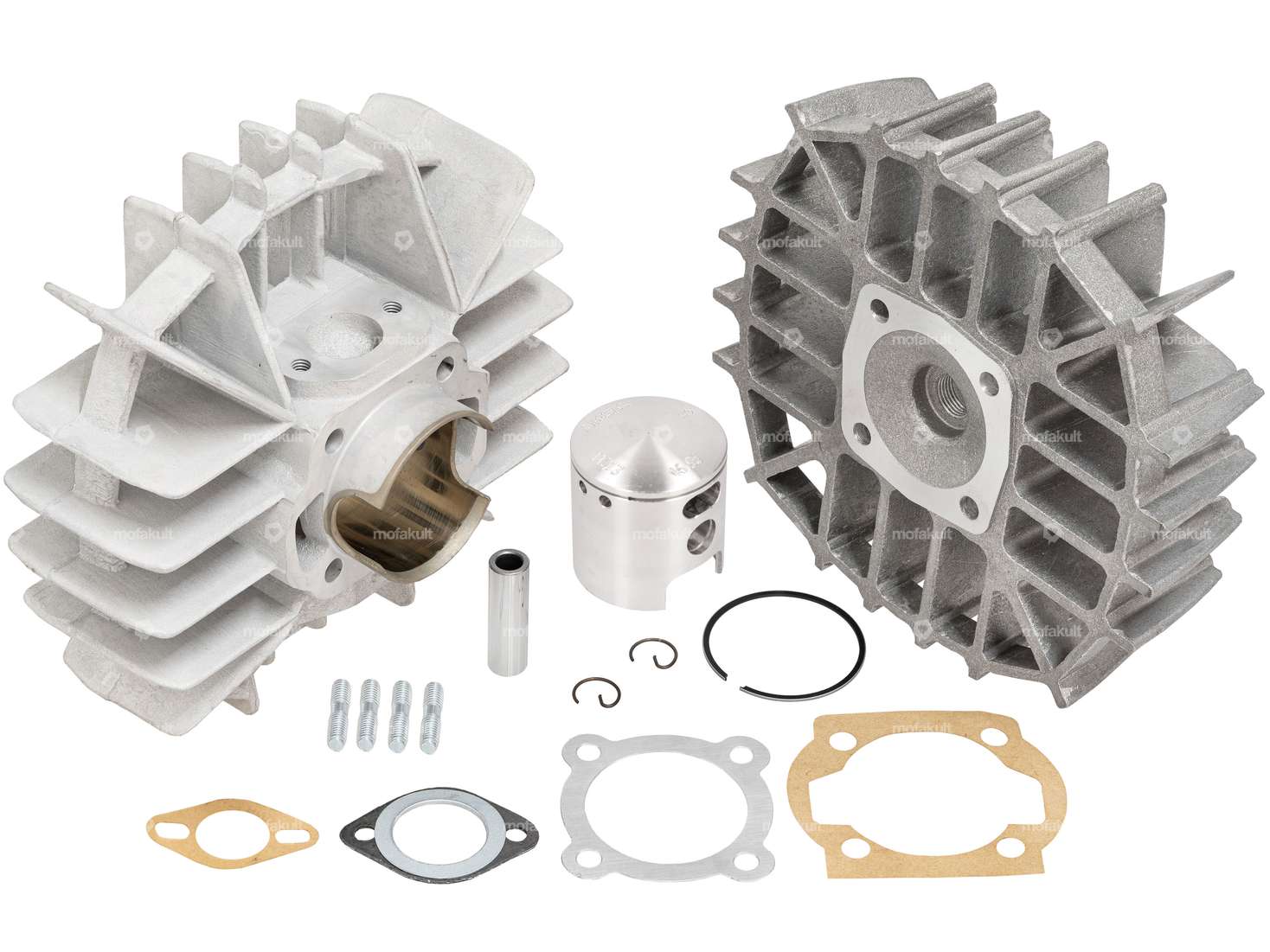

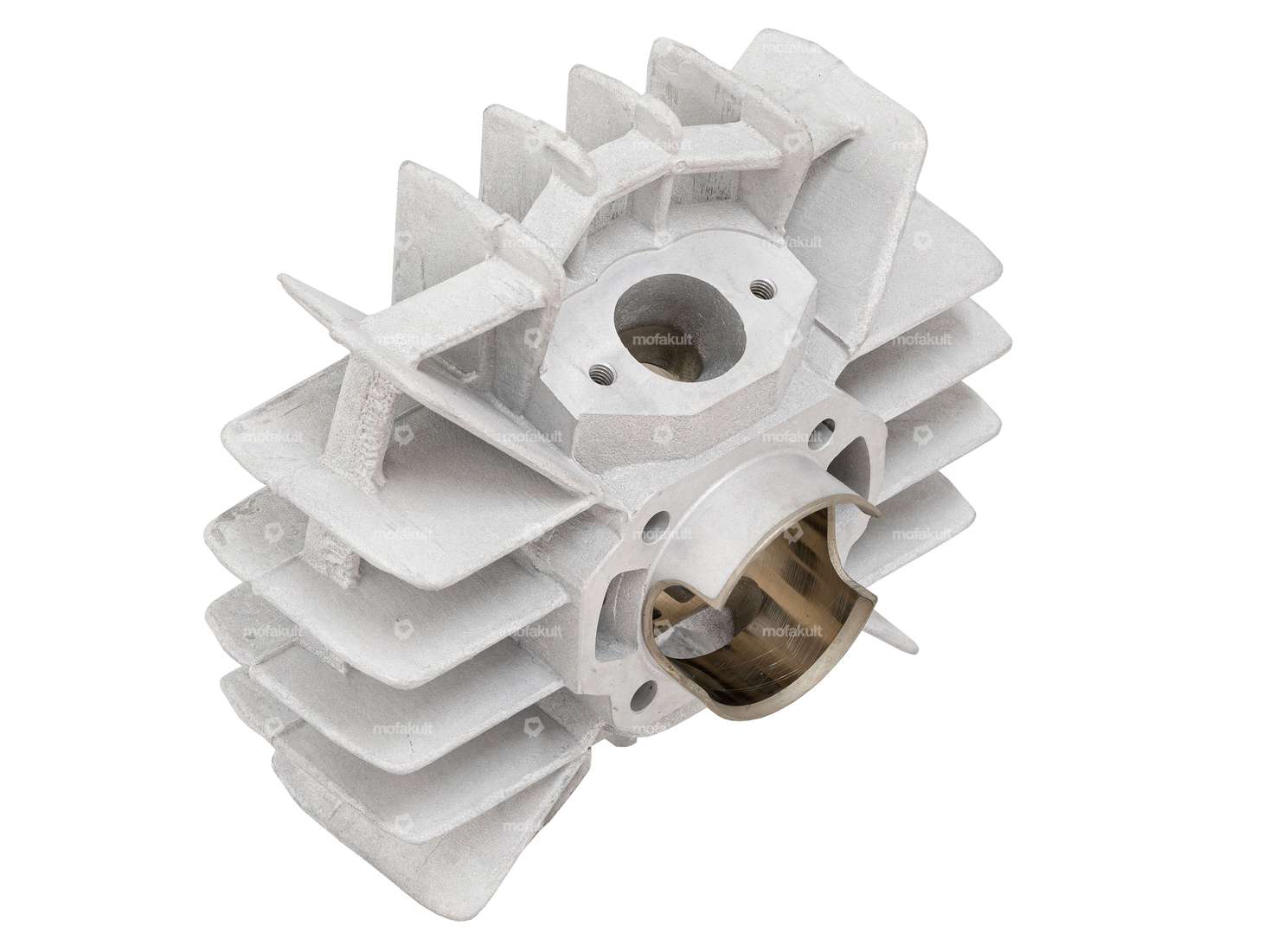

47 mm racing cylinder from Airsal suitable for Puch Maxi S & N, X30 Sport.
.The 75 cc racing kit has a narrow exhaust, which is why appropriate exhausts must be fitted.
To fit the cylinder, the engine housing must be spindled out.
The outer diameter of the cylinder neck is 51 mm.
| Manufacturer | Airsal |
| Material | Aluminum |
| Area of application | Tuning |
| Surface | sandblasted |
| Displacement | 75 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 47 mm |
| Number of fixing points | 4 pcs |
| Thread inlet | M6x1 (standard thread) |
| Ø piston pin (B) | 12 mm |
| Outlet type | slanted |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
| Hole spacing inlet | 38 mm |
| Puch | E50 ZA50 (air-cooled) Z50 (X30 Sport) |
