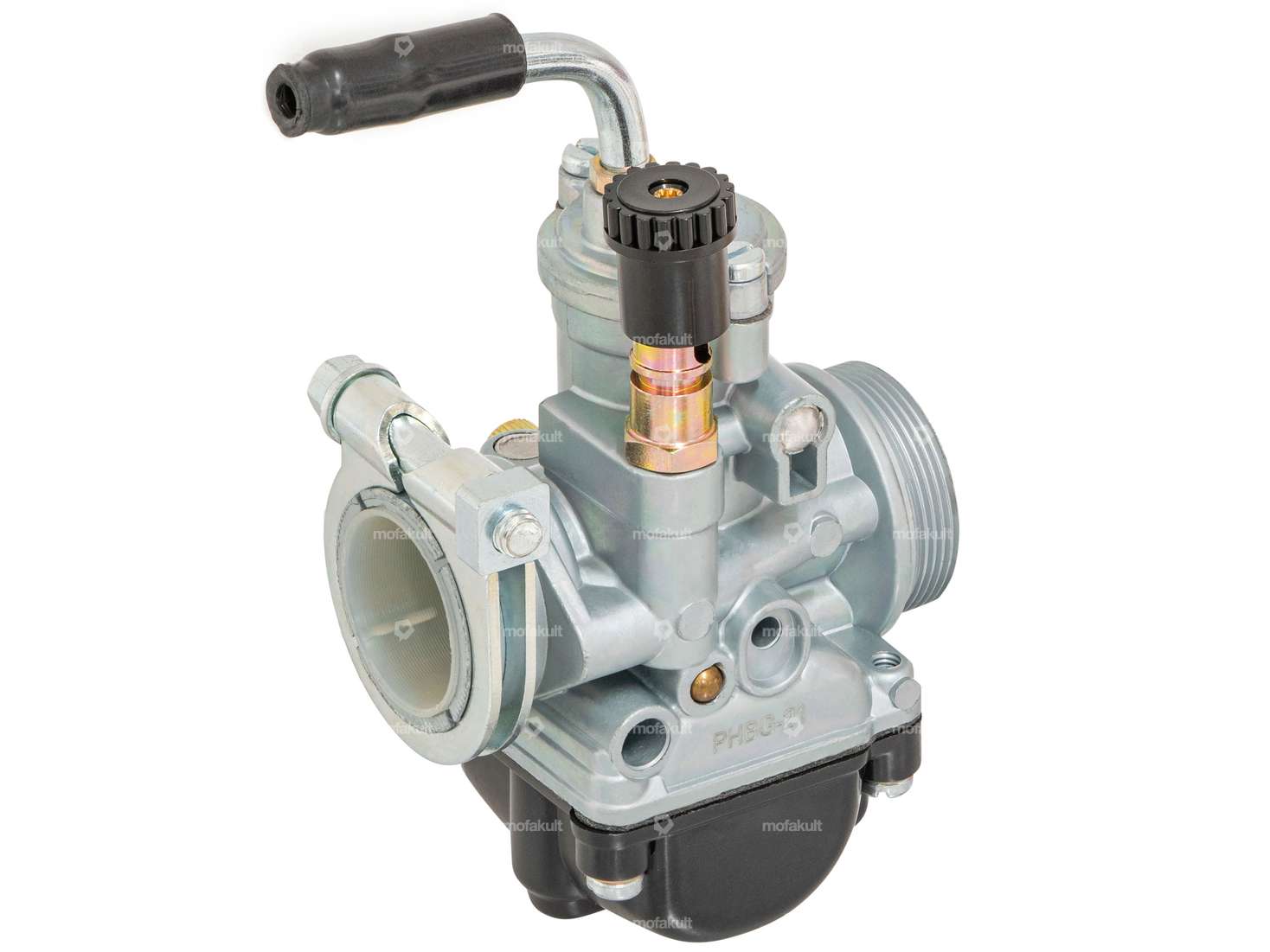

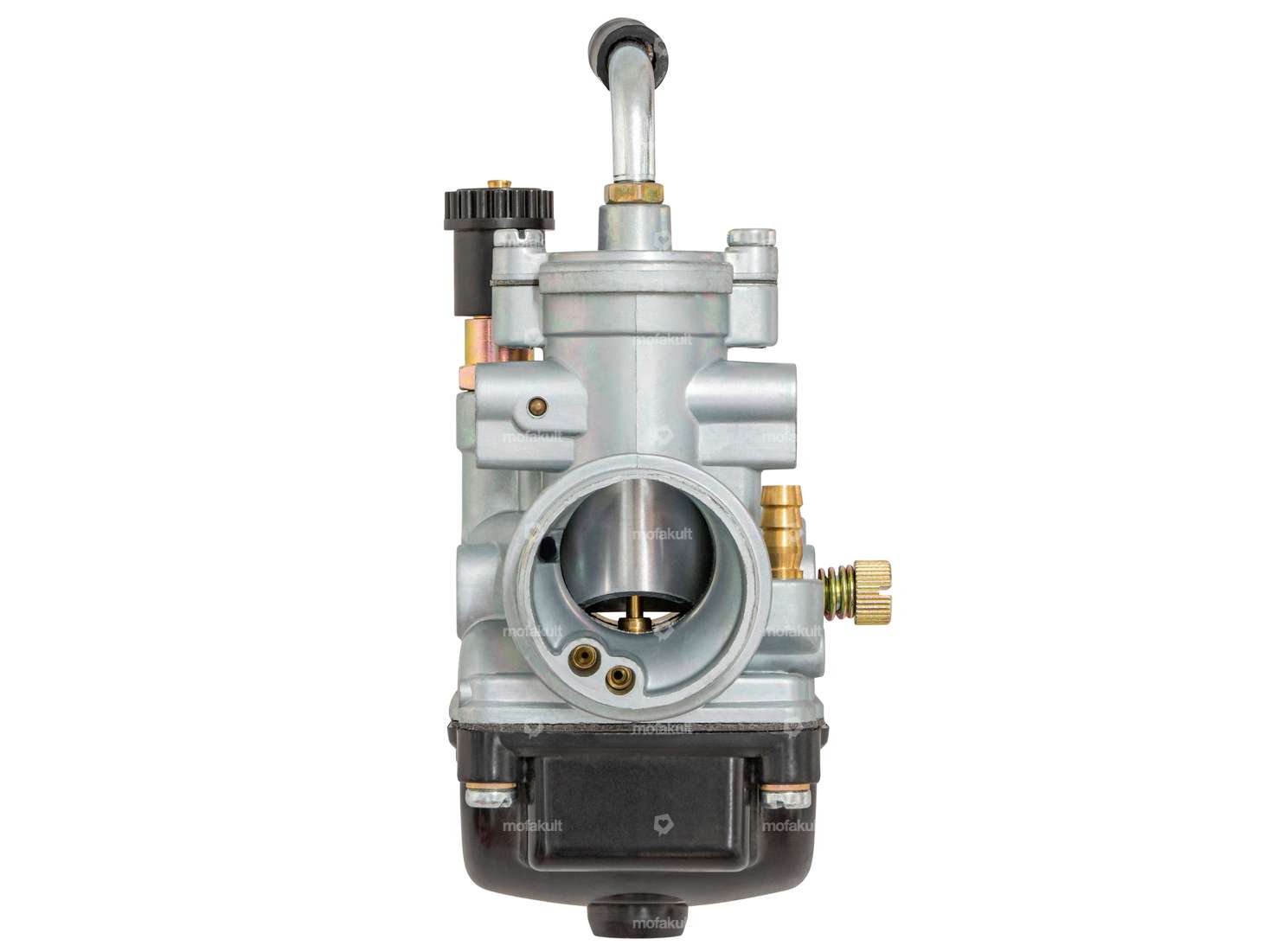

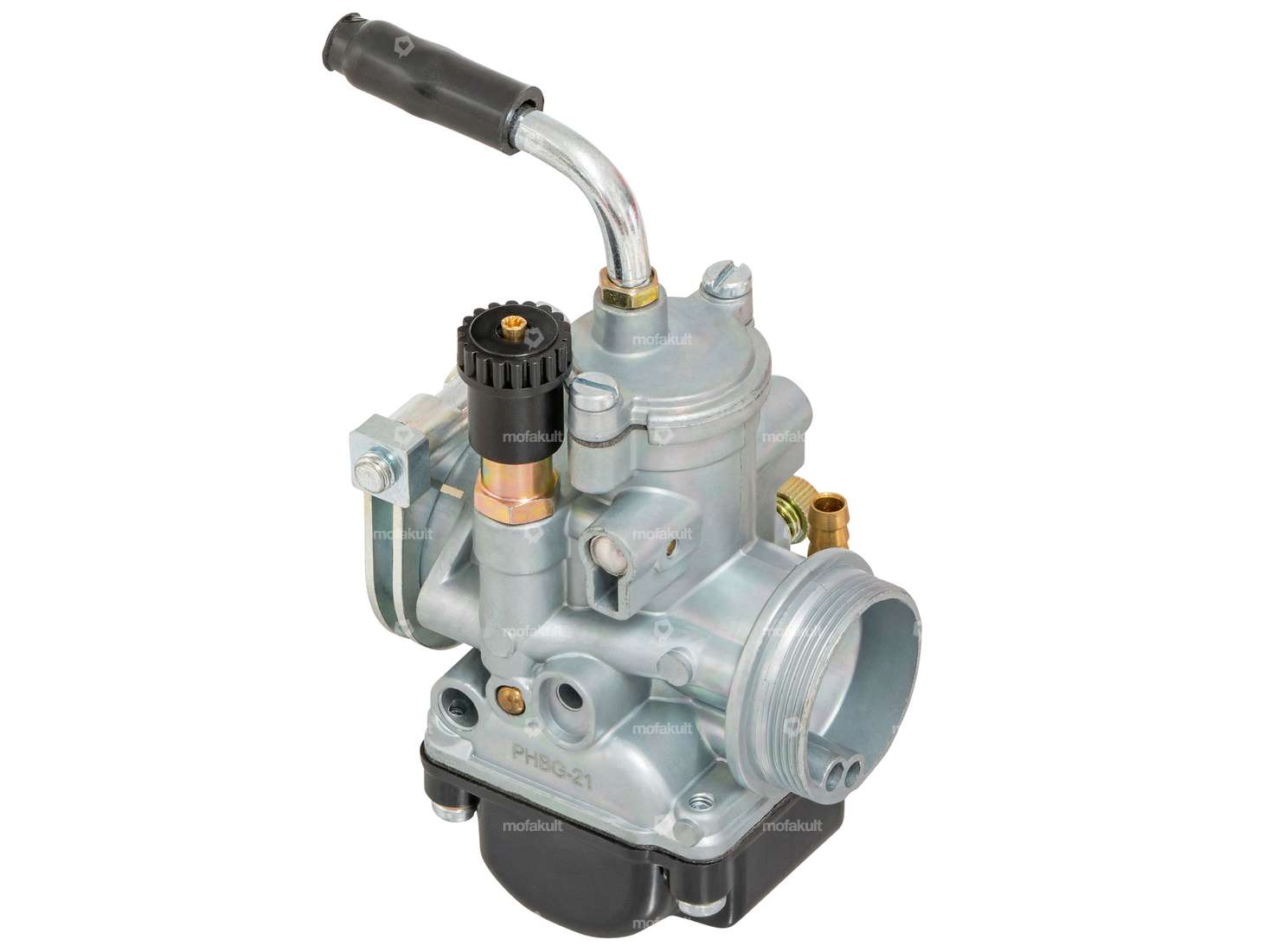

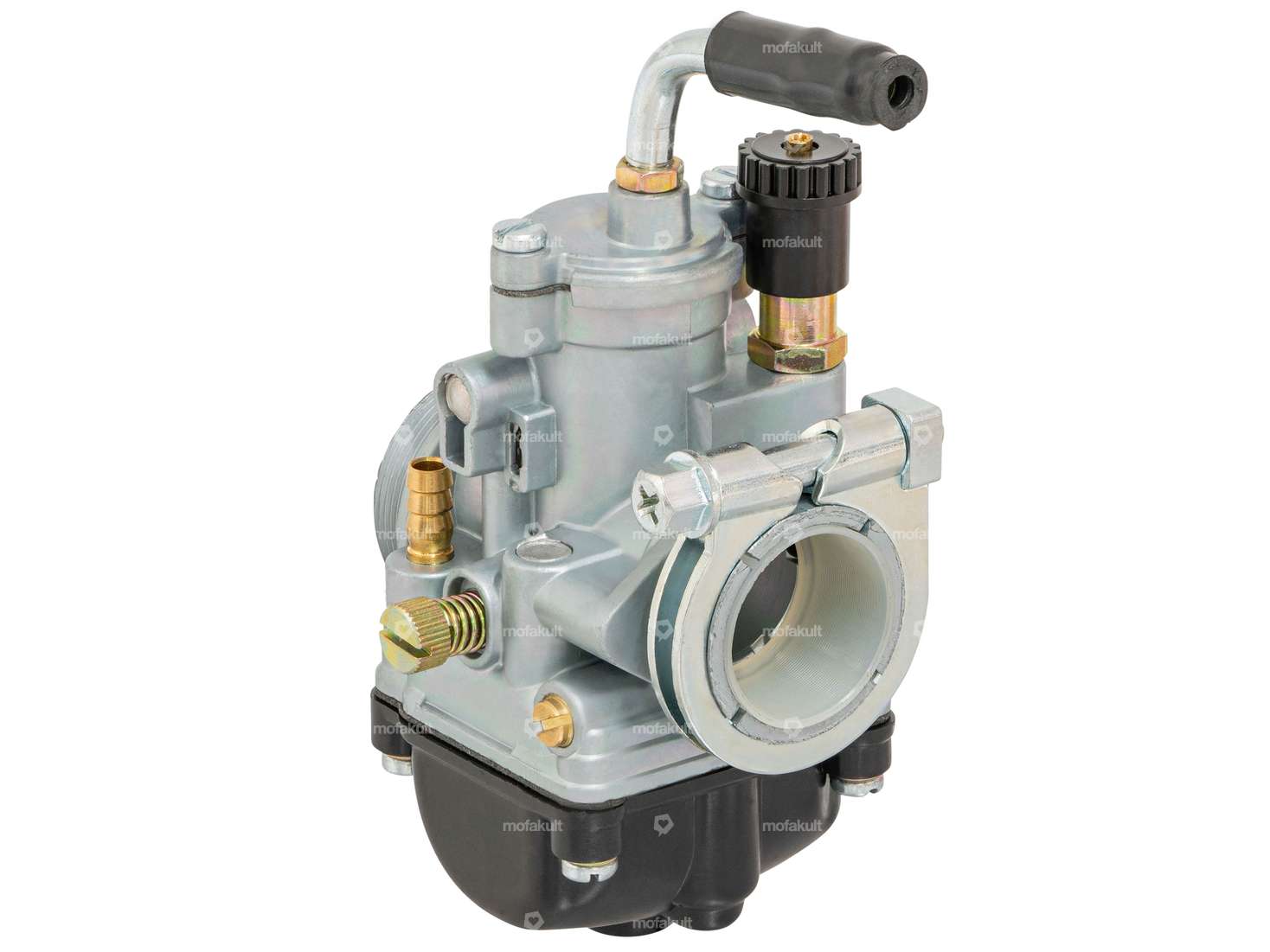

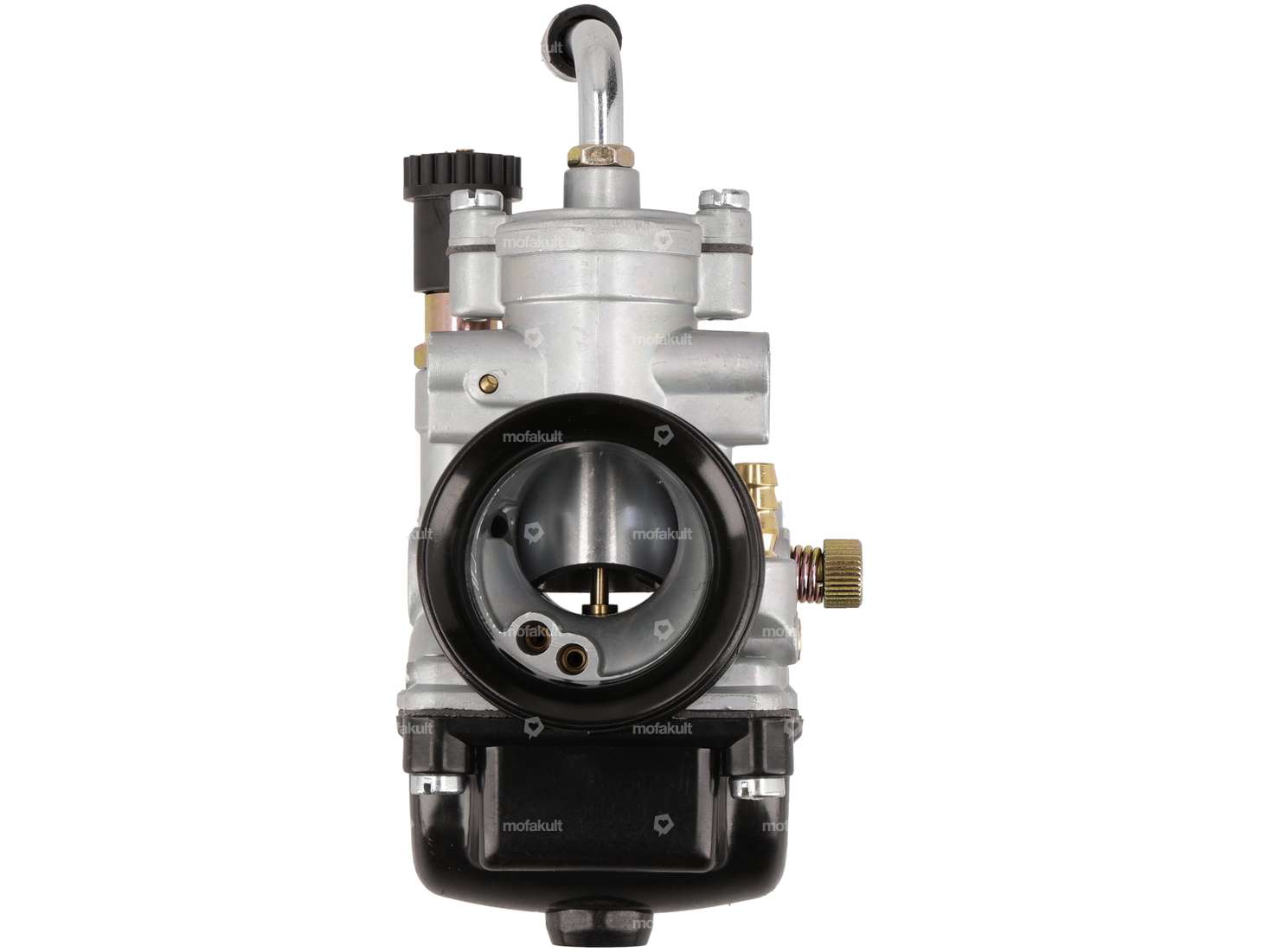

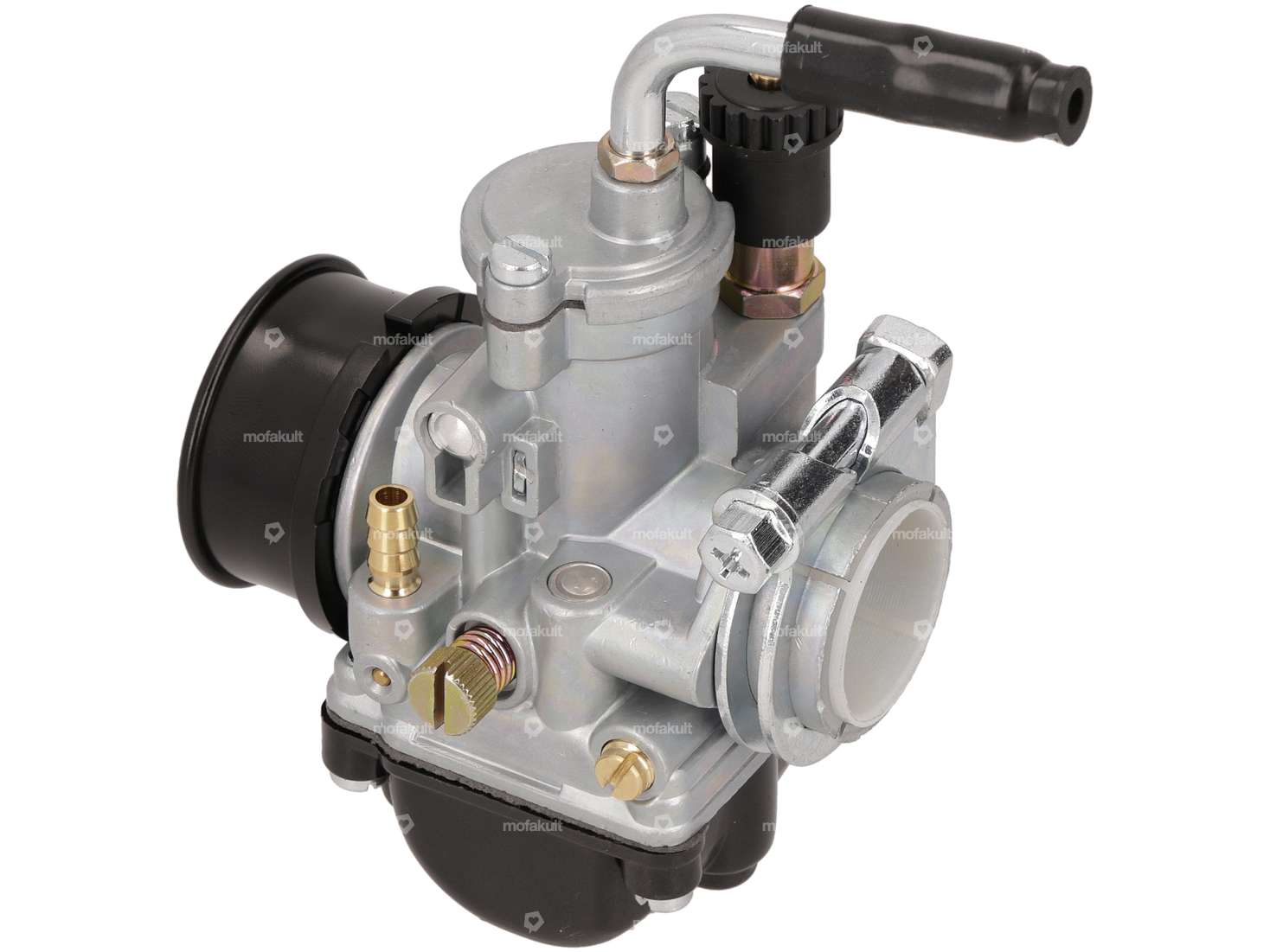

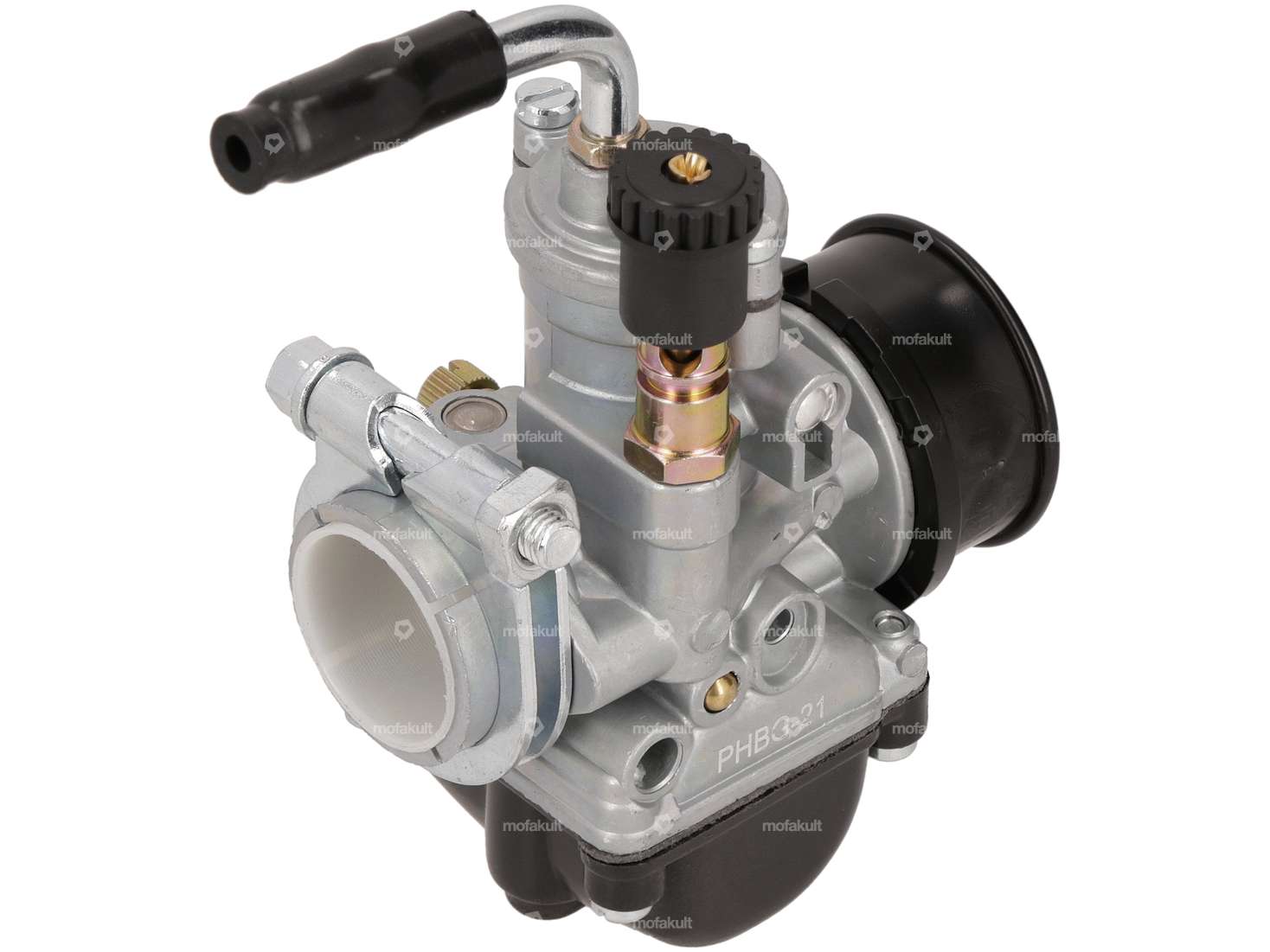

21 mm PHBG replica racing carburetor for universal use for your moped, moped and small motorcycle.
This racing carburetor is suitable for tuning and is designed for racing bikes between 50 and 75 cc.
The tuning carburetor has a manually operated choke (starter slide / starter flap).
The fuel/air mixture can be perfectly adjusted using the main and secondary air flow as well as the mixture adjustment screw.
The carburetor has an M32x1.25 thread on the air filter side. The air filter can be attached directly to the thread.
Main thread size (M5): 90
Side thread size (idle thread): 55
Choked thread size: 53
Air filter connection diameter: 32 mm (M32 x 1.25)
Inlet connection diameter: 24 mm (or 26 mm after removing the reducer). 26 mm after removing the reduction sleeve)
Total height: 132 mm
Total length: 70 mm
Total width: 60 mm
High-quality alternatives, matching nozzles, air filters and intake manifolds can be found in the accessories section.
Good-quality aftermarket product from the Asian market.
| Carburetor type | PHBG |
| Nominal diameter | 21 mm |
| Manufacturer | Quenching |
| Material | Aluminum, Plastic |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Choke control | Hand choke |
| Width | 60 mm |
| Ø fuel hose connection | 5 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Mounting type | Plug connection clamped |
| Nozzle size | 90 |
| Ø without reducing sleeve | 26 mm |
| Height | 132 mm |
| Ø Inside entrance | 24 mm |
| Ø Output inside | 24 mm |
| Ø Air filter connection | 32 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Total length | 71 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke nozzle size | 53 |
| Camouflaged | No |
| Size of secondary nozzle | 55 |
| Area of application | Tuning |
